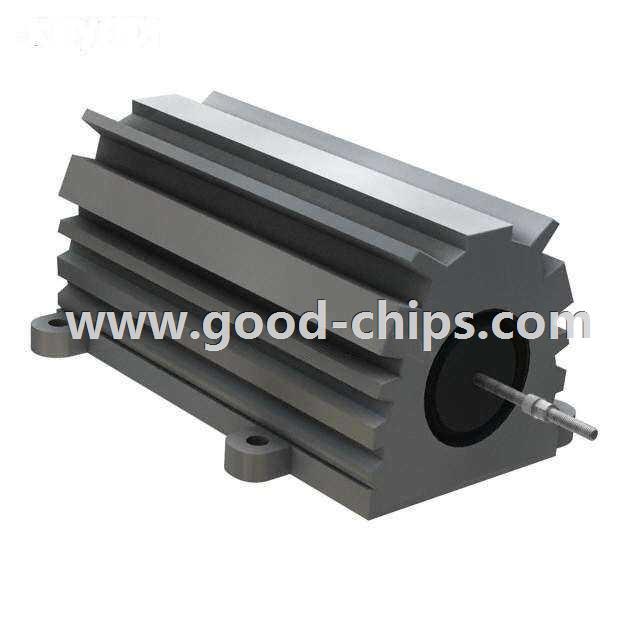

| Manufacturer Part Number: | NH25020R00FJ01 |
|---|---|
| Manufacturer: | Vishay BC Components |
| Product Category: | Chassis Mount Resistors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RES CHAS MNT 20 OHM 1% 250W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NH25020R00FJ01 Datasheet |
| Internal Part Number | 898-NH25020R00FJ01 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | NH,RER,RH,TMC Part Marking 10/Jun/2016 | |
| Category | Resistors | |
| Family | Chassis Mount Resistors | |
| Manufacturer | Vishay Dale | |
| Series | NH | |
| Packaging | Bulk | |
| Part Status | Active | |
| Resistance (Ohms) | 20 | |
| Tolerance | ±1% | |
| Power (Watts) | 250W | |
| Composition | Wirewound | |
| Temperature Coefficient | ±20ppm/°C | |
| Operating Temperature | -55°C ~ 250°C | |
| Features | Moisture Resistant, Non-Inductive | |
| Coating, Housing Type | Aluminum | |
| Mounting Feature | Flanges | |
| Size / Dimension | 4.500" L x 3.000" W (114.30mm x 76.20mm) | |
| Height | 2.219" (56.37mm) | |
| Lead Style | Solder Lugs | |
| Package / Case | Axial, Box | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NH25020R00FJ01 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NH25020R00FJ01 is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of NH25020R00FJ01 is new and unused, you can buy NH25020R00FJ01 Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NH25020R00FJ01.
