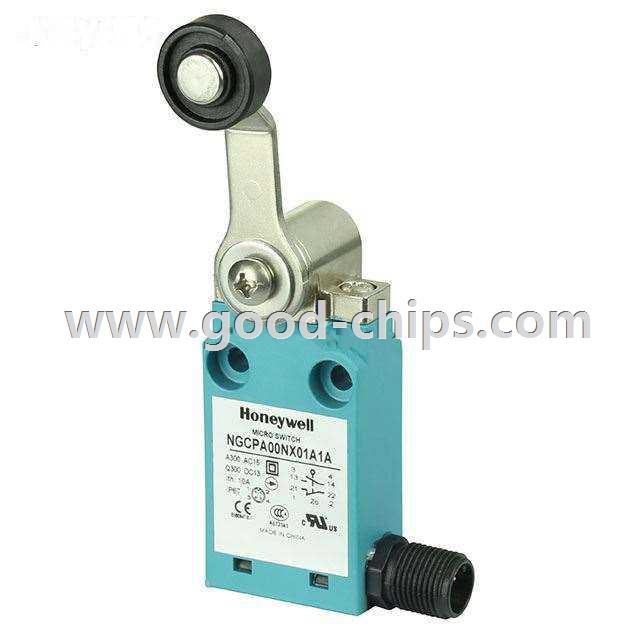

| Manufacturer Part Number: | NGCPA00NX01A1A |
|---|---|
| Manufacturer: | Honeywell Sensing and Productivity Solutions |
| Product Category: | Snap Action, Limit Switches |
| Available Quantity: | 9015 Pieces |
| Unit Price: | Quote by Email |
| Description: | SWITCH SNAP ACTION SPDT 6A 120V |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NGCPA00NX01A1A Datasheet |
| Internal Part Number | 898-NGCPA00NX01A1A | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Video File | Honeywell NGC Series Limit Switches | Digi-Key Daily | |
| RoHS Information | NGC Series, Cert of Compliance-REACH NGC Series, Cert of Compliance-RoHS2 | |
| Featured Product | NGC Series Limit Switches | |
| 3D Model | NGCPA00NX01A1A.stp | |
| Online Catalog | MICRO SWITCH™ NGC Series | |
| Category | Switches | |
| Family | Snap Action, Limit Switches | |
| Manufacturer | Honeywell Sensing and Productivity Solutions | |
| Series | NGC | |
| Packaging | Bulk | |
| Part Status | Active | |
| Circuit | SPDT | |
| Switch Function | On-Mom | |
| Current Rating | 6A (AC), 550mA (DC) | |
| Voltage Rating - AC | 120V | |
| Voltage Rating - DC | 125V | |
| Actuator Type | Side Rotary, Roller | |
| Mounting Type | Chassis Mount | |
| Termination Style | Connector | |
| Ingress Protection | IP67 - Dust Tight, Waterproof | |
| Features | Nylon Roller | |
| Operating Force, Torque | 1.590 in-lb | |
| Release Force | 0.220 in-lb | |
| Pretravel | 25° | |
| Differential Travel | 15° | |
| Overtravel | 65° | |
| Operating Position | 25° | |
| Mechanical Life | 5,000,000 Cycles | |
| Electrical Life | 500,000 Cycles | |
| Operating Temperature | -25°C ~ 70°C | |
| Standard Package | 30 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NGCPA00NX01A1A | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NGCPA00NX01A1A is in stock for immediate shipping now. We are the distributor of Honeywell Sensing and Productivity Solutions all series components. The condition of NGCPA00NX01A1A is new and unused, you can buy NGCPA00NX01A1A Honeywell Sensing and Productivity Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NGCPA00NX01A1A.
