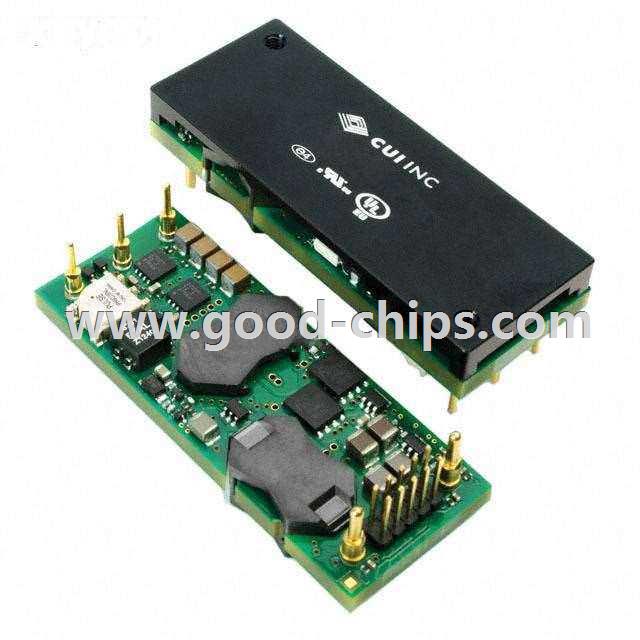

| Manufacturer Part Number: | NEB-264DWA-ANH |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONV BUS 12V OUT 264W DG HS |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NEB-264DWA-ANH Datasheet |
| Internal Part Number | 898-NEB-264DWA-ANH | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | Novum Intermediate Bus Converters EMI Regulations and Mitigation Considerations for Switching Power Supplies Reliability Considerations for Power Supplies Power Supply Safety Standards, Agencies and Marks Thermal Management of Power Supplies | |
| Video File | Advanced Intermediate Bus Converters | |
| RoHS Information | NEB-D Series Cert of Compliance | |
| Design Resources | Novum ACE™ Registration | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | Novum®, NEB-D | |
| Packaging | Tray | |
| Part Status | Active | |
| Type | Intermediate Bus Converter, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 36V | |
| Voltage - Input (Max) | 75V | |
| Voltage - Output 1 | 12V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 22A | |
| Power (Watts) - Manufacture Series | 264W | |
| Voltage - Isolation | 2.25kV (2250V) | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, OVP, UVLO | |
| Mounting Type | Through Hole | |
| Package / Case | 15-DIP Module, 1/8 Brick | |
| Size / Dimension | 2.30" L x 0.89" W x 0.52" H (58.4mm x 22.7mm x 13.2mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 95.2% | |
| Power (Watts) - Max | 264W | |
| Standard Package | 75 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NEB-264DWA-ANH | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NEB-264DWA-ANH is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NEB-264DWA-ANH is new and unused, you can buy NEB-264DWA-ANH CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NEB-264DWA-ANH.
