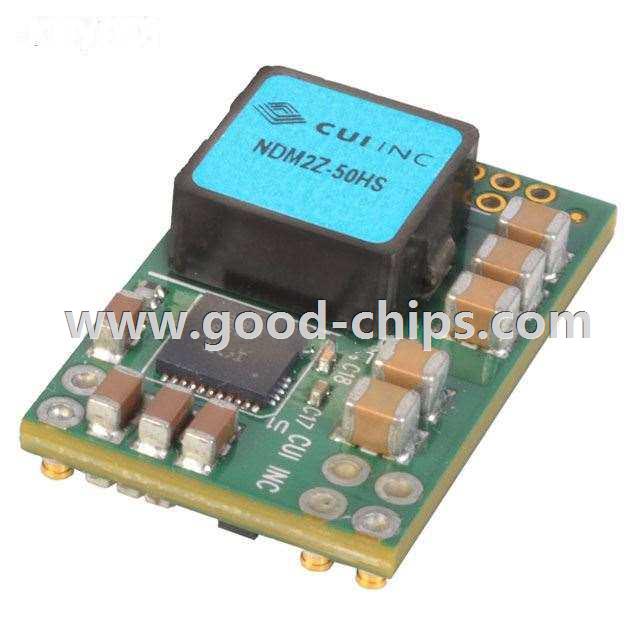

Manufacturer Part Number: | NDM2Z-50HS-A-001 |
---|---|
Manufacturer: | CUI Inc. |
Product Category: | DC DC Converters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | CONVERTER DC/DC 3.3V 50A OUT |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NDM2Z-50HS-A-001 Datasheet |
Internal Part Number | 898-NDM2Z-50HS-A-001 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
RoHS Information | NDM2Z Series Cert of Compliance | |
Design Resources | Novum ACE™ Registration | |
Category | Power Supplies - Board Mount | |
Family | DC DC Converters | |
Manufacturer | CUI Inc. | |
Series | Novum® NDM2Z | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Type | Non-Isolated PoL Module, Digital | |
Number of Outputs | 1 | |
Voltage - Input (Min) | 4.5V | |
Voltage - Input (Max) | 14V | |
Voltage - Output 1 | 0.6 ~ 3.3 V | |
Voltage - Output 2 | - | |
Voltage - Output 3 | - | |
Current - Output (Max) | 50A | |
Power (Watts) - Manufacture Series | - | |
Voltage - Isolation | - | |
Applications | ITE (Commercial) | |
Features | Digital | |
Mounting Type | Surface Mount | |
Package / Case | 20-SMD Module | |
Size / Dimension | 1.22" L x 0.79" W x 0.32" H (30.9mm x 20.0mm x 8.2mm) | |
Operating Temperature | -40°C ~ 125°C | |
Efficiency | 94.6% | |
Power (Watts) - Max | - | |
Standard Package | 130 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NDM2Z-50HS-A-001 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NDM2Z-50HS-A-001 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NDM2Z-50HS-A-001 is new and unused, you can buy NDM2Z-50HS-A-001 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NDM2Z-50HS-A-001.
