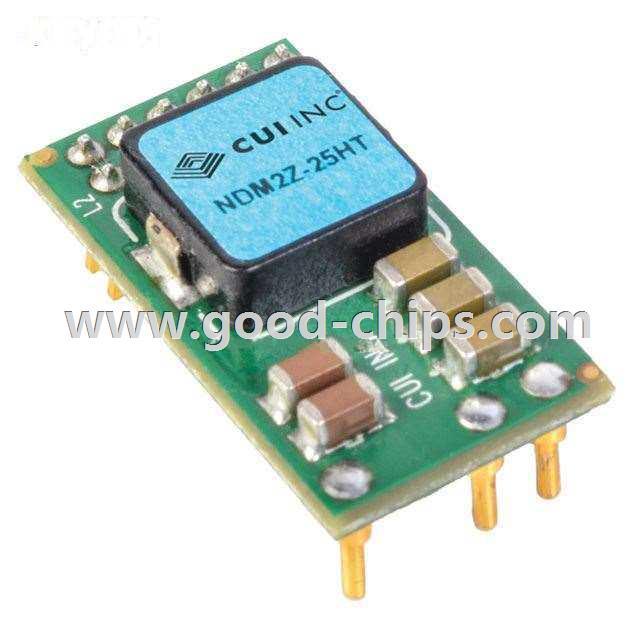

| Manufacturer Part Number: | NDM2Z-25HT-P-001 |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | CONVERTER DC/DC 3.3V 25A OUT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NDM2Z-25HT-P-001 Datasheet |
| Internal Part Number | 898-NDM2Z-25HT-P-001 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | NDM2Z Series Cert of Compliance | |
| Design Resources | Novum ACE™ Registration | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | CUI Inc. | |
| Series | Novum® NDM2Z | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module, Digital | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 14V | |
| Voltage - Output 1 | 0.6 ~ 3.3 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 25A | |
| Power (Watts) - Manufacture Series | - | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Digital | |
| Mounting Type | Through Hole | |
| Package / Case | 15-DIP Module | |
| Size / Dimension | 1.01" L x 0.54" W x 0.32" H (25.7mm x 13.8mm x 8.2mm) | |
| Operating Temperature | -40°C ~ 125°C | |
| Efficiency | 93.9% | |
| Power (Watts) - Max | - | |
| Standard Package | 200 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NDM2Z-25HT-P-001 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NDM2Z-25HT-P-001 is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NDM2Z-25HT-P-001 is new and unused, you can buy NDM2Z-25HT-P-001 CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NDM2Z-25HT-P-001.
