| Manufacturer Part Number: | NDM1 KIT |
|---|---|
| Manufacturer: | CUI Inc. |
| Product Category: | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

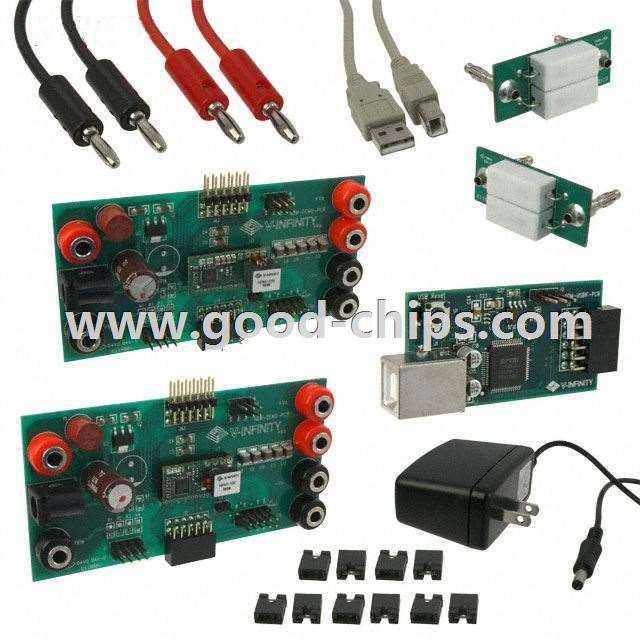

| Description: | NDM1-12-120, NDM1-25-120 Novum Digital Module POL DC/DC, Step Down 1, Non-Isolated Outputs Evaluation Board |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NDM1 KIT Datasheet |
| Internal Part Number | 898-NDM1 KIT | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| RoHS Information | NDM1-DEMO Cert of Compliance | |
| Design Resources | Development Tool Selector | |
| Featured Product | Novum Digital DC-DC Power Modules | |
| Category | Programmers, Development Systems | |
| Family | Evaluation Boards - DC/DC & AC/DC (Off-Line) SMPS | |
| Manufacturer | CUI Inc. | |
| Series | Novum Digital Module POL | |
| Part Status | Obsolete | |
| Main Purpose | DC/DC, Step Down | |
| Outputs and Type | 1, Non-Isolated | |
| Power - Output | - | |
| Voltage - Output | 0.6 V ~ 2.5 V | |
| Current - Output | 12A, 25A | |
| Voltage - Input | 8.5 V ~ 14 V | |
| Regulator Topology | Buck | |
| Frequency - Switching | 375kHz ~ 500kHz | |
| Board Type | Fully Populated | |
| Supplied Contents | 5 Boards, Cable, Power Supply | |
| Utilized IC / Part | NDM1-12-120, NDM1-25-120 | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NDM1 KIT | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NDM1 KIT is in stock for immediate shipping now. We are the distributor of CUI Inc. all series components. The condition of NDM1 KIT is new and unused, you can buy NDM1 KIT CUI Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NDM1 KIT.
