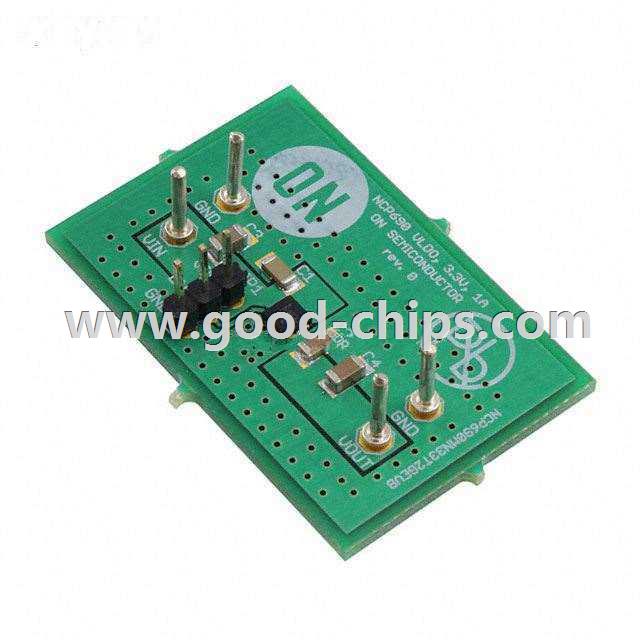

Manufacturer Part Number: | NCP690MN33T2GEVB |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Evaluation Boards - Linear Voltage Regulators |
Available Quantity: | 9011 Pieces |
Unit Price: | Quote by Email |
Description: | NCP690 1 - Single Channels per IC Positive Fixed Linear Voltage Regulator Evaluation Board |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NCP690MN33T2GEVB Datasheet |
Internal Part Number | 898-NCP690MN33T2GEVB | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | NCP690MN33T2GEVB Gerber Files NCP690MN33T2GEVB BOM NCP690MN33T2GEVB Schematic Development Tool Selector | |
Category | Programmers, Development Systems | |
Family | Evaluation Boards - Linear Voltage Regulators | |
Manufacturer | ON Semiconductor | |
Series | - | |
Part Status | Obsolete | |
Channels per IC | 1 - Single | |
Voltage - Output | 3.3V | |
Current - Output | 1A | |
Voltage - Input | - | |
Regulator Type | Positive Fixed | |
Operating Temperature | -40°C ~ 85°C | |
Board Type | Fully Populated | |
Supplied Contents | Board | |
Utilized IC / Part | NCP690 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NCP690MN33T2GEVB | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NCP690MN33T2GEVB is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP690MN33T2GEVB is new and unused, you can buy NCP690MN33T2GEVB ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP690MN33T2GEVB.
