| Manufacturer Part Number: | NCP5030MTTXG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - LED Drivers |
| Available Quantity: | 15010 Pieces |
| Unit Price: | Quote by Email |
| Description: | LED Driver IC 1 Output DC DC Regulator Step-Down (Buck), Step-Up (Boost) PWM Dimming 900mA 12-WDFN (4x3) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP5030MTTXG Datasheet |
| Internal Part Number | 898-NCP5030MTTXG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Lighting Product Selector | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - LED Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | DC DC Regulator | |
| Topology | Step-Down (Buck), Step-Up (Boost) | |
| Internal Switch(s) | Yes | |
| Number of Outputs | 1 | |
| Voltage - Supply (Min) | 2.7V | |
| Voltage - Supply (Max) | 5.5V | |
| Voltage - Output | 2.2 V ~ 5.5 V | |
| Current - Output / Channel | 900mA | |
| Frequency | 700kHz | |
| Dimming | PWM | |
| Applications | - | |
| Operating Temperature | -40°C ~ 85°C (TA) | |
| Mounting Type | Surface Mount | |

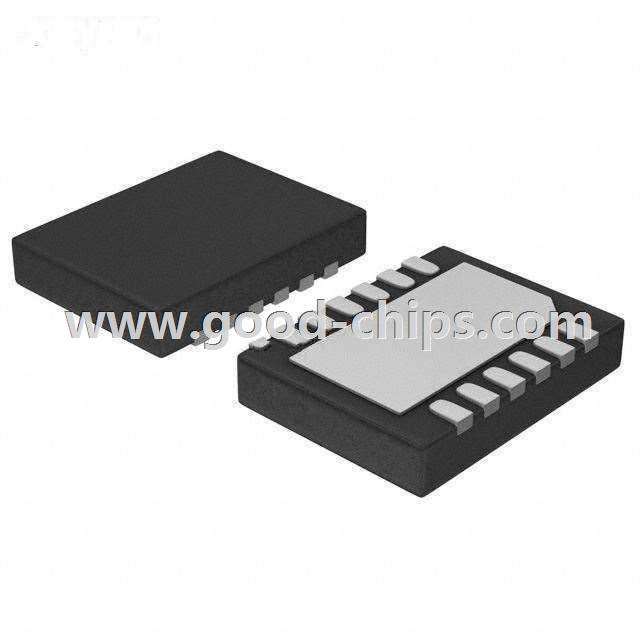

| Package / Case | 12-WFDFN Exposed Pad | |
| Supplier Device Package | 12-WDFN (4x3) | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP5030MTTXG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP5030MTTXG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP5030MTTXG is new and unused, you can buy NCP5030MTTXG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP5030MTTXG.
