Manufacturer Part Number: | NCP451AFCT2G |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | PMIC - Power Distribution Switches, Load Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | IC LOAD SWITCH CTLR 3A 6WLCSP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NCP451AFCT2G Datasheet |
Internal Part Number | 898-NCP451AFCT2G | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | General Purpose | |
Category | Integrated Circuits (ICs) | |
Family | PMIC - Power Distribution Switches, Load Drivers | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Switch Type | General Purpose | |
Number of Outputs | 1 | |
Ratio - Input:Output | 1:1 | |
Output Configuration | High Side | |
Output Type | N-Channel | |
Interface | On/Off | |
Voltage - Load | 0.75 V ~ 5.5 V | |
Voltage - Supply (Vcc/Vdd) | Not Required | |
Current - Output (Max) | 3A | |
Rds On (Typ) | 12 mOhm | |
Input Type | Non-Inverting | |
Features | Load Discharge, Slew Rate Controlled | |
Fault Protection | - | |
Operating Temperature | -40°C ~ 85°C (TA) | |

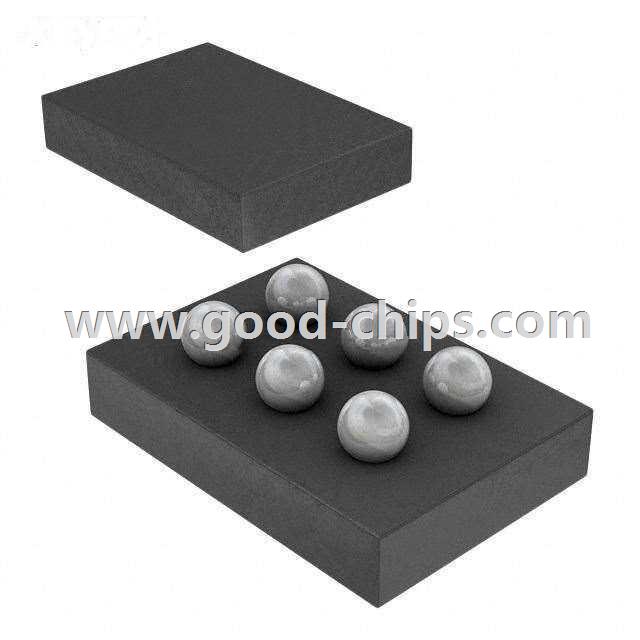

Package / Case | 6-UFBGA, WLCSP | |
Supplier Device Package | 6-WLCSP (1.4x0.9) | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NCP451AFCT2G | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NCP451AFCT2G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP451AFCT2G is new and unused, you can buy NCP451AFCT2G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP451AFCT2G.
