| Manufacturer Part Number: | NCP1070P130G |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | PMIC - AC DC Converters, Offline Switchers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Converter Offline Flyback Topology 130kHz 7-PDIP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NCP1070P130G Datasheet |
| Internal Part Number | 898-NCP1070P130G | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | PDIP7 19/Jul/2016 | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - AC DC Converters, Offline Switchers | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Output Isolation | Isolated | |
| Internal Switch(s) | Yes | |
| Voltage - Breakdown | 700V | |
| Topology | Flyback | |
| Voltage - Start Up | 8.2V | |
| Voltage - Supply (Vcc/Vdd) | 6.3 V ~ 10 V | |
| Duty Cycle | 68% | |
| Frequency - Switching | 130kHz | |
| Power (Watts) | 14W | |
| Fault Protection | Over Load, Over Temperature, Over Voltage, Short Circuit | |
| Control Features | - | |
| Operating Temperature | -40°C ~ 125°C (TJ) | |

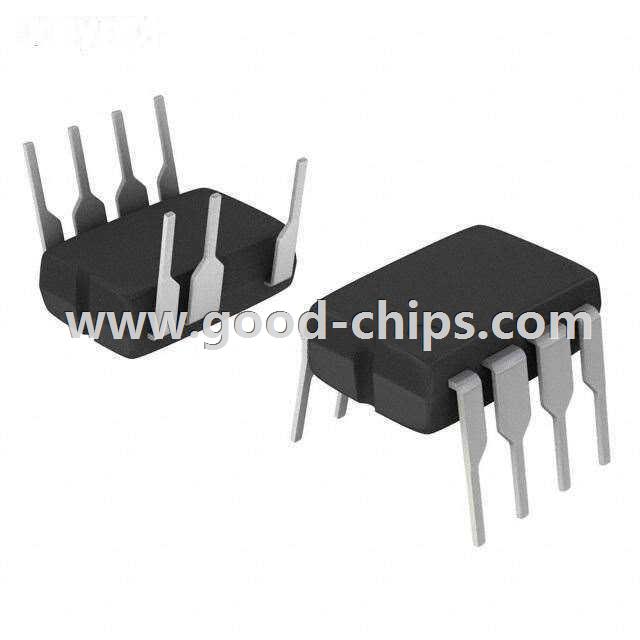

| Package / Case | 8-DIP (0.300", 7.62mm) | |
| Supplier Device Package | 7-PDIP | |
| Mounting Type | Through Hole | |
| Standard Package | 50 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NCP1070P130G | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NCP1070P130G is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NCP1070P130G is new and unused, you can buy NCP1070P130G ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NCP1070P130G.
