Manufacturer Part Number: | NC7SP08FHX |
---|---|
Manufacturer: | Fairchild Semiconductor |
Product Category: | Logic - Gates and Inverters |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | AND Gate IC 1 Channel 6-MicroPak2™ |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NC7SP08FHX Datasheet |
Internal Part Number | 898-NC7SP08FHX | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Integrated Circuits (ICs) | |
Family | Logic - Gates and Inverters | |
Manufacturer | Fairchild Semiconductor | |
Series | 7SP | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Logic Type | AND Gate | |
Number of Circuits | 1 | |
Number of Inputs | 2 | |
Features | - | |
Voltage - Supply | 0.9 V ~ 3.6 V | |
Current - Quiescent (Max) | 0.9µA | |
Current - Output High, Low | 2.6mA, 2.6mA | |
Logic Level - Low | 0.7 V ~ 0.9 V | |
Logic Level - High | 1.6 V ~ 2.1 V | |
Max Propagation Delay @ V, Max CL | 9.2ns @ 3.3V, 30pF | |
Operating Temperature | -40°C ~ 85°C | |
Mounting Type | Surface Mount | |

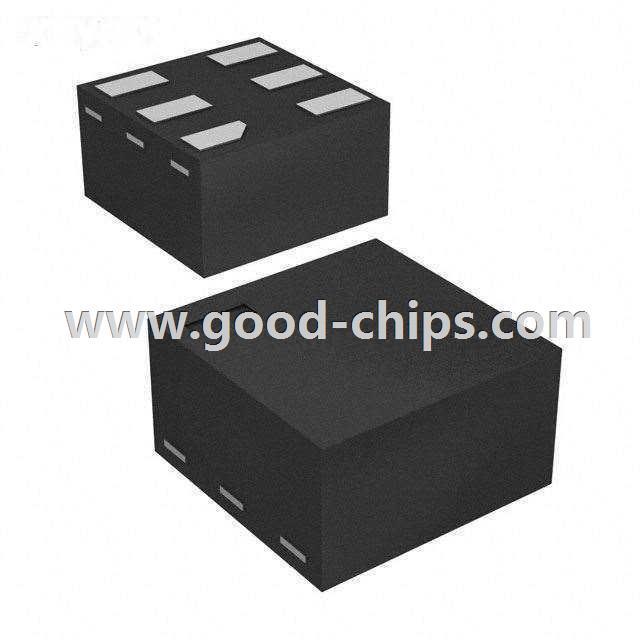

Supplier Device Package | 6-MicroPak2™ | |
Package / Case | 6-UFDFN | |
Standard Package | 5,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NC7SP08FHX | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NC7SP08FHX is in stock for immediate shipping now. We are the distributor of Fairchild Semiconductor all series components. The condition of NC7SP08FHX is new and unused, you can buy NC7SP08FHX Fairchild Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NC7SP08FHX.
