| Manufacturer Part Number: | NBSG86ABAHTBG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Logic - Gates and Inverters - Multi-Function, Configurable |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Configurable Multiple Function Configurable 2 Circuit 2 Input 16-FCBGA (4x4) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NBSG86ABAHTBG Datasheet |
| Internal Part Number | 898-NBSG86ABAHTBG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 05/Oct/2010 | |
| Category | Integrated Circuits (ICs) | |
| Family | Logic - Gates and Inverters - Multi-Function, Configurable | |
| Manufacturer | ON Semiconductor | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Obsolete | |
| Logic Type | Configurable Multiple Function | |
| Number of Circuits | 2 | |
| Number of Inputs | 2 | |
| Schmitt Trigger Input | No | |
| Output Type | Differential | |
| Current - Output High, Low | - | |
| Voltage - Supply | 2.375 V ~ 3.465 V | |
| Operating Temperature | -40°C ~ 70°C | |
| Mounting Type | Surface Mount | |

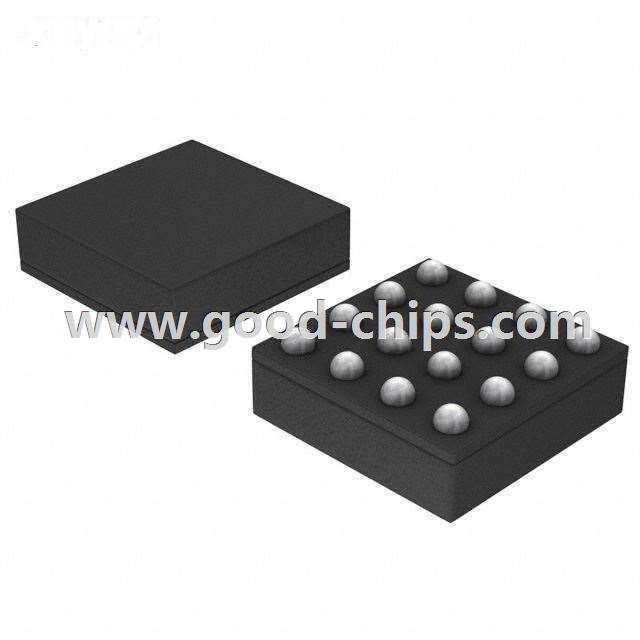

| Package / Case | 16-LBGA, FCBGA | |
| Supplier Device Package | 16-FCBGA (4x4) | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NBSG86ABAHTBG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NBSG86ABAHTBG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NBSG86ABAHTBG is new and unused, you can buy NBSG86ABAHTBG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NBSG86ABAHTBG.
