Manufacturer Part Number: | NBSG111BAHTBG |
---|---|
Manufacturer: | ON Semiconductor |
Product Category: | Clock/Timing - Clock Buffers, Drivers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Clock Fanout Buffer (Distribution), Multiplexer, Data IC 6GHz 49-LBGA, FCBGA |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | NBSG111BAHTBG Datasheet |
Internal Part Number | 898-NBSG111BAHTBG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Multiple Devices 05/Oct/2010 | |
Category | Integrated Circuits (ICs) | |
Family | Clock/Timing - Clock Buffers, Drivers | |
Manufacturer | ON Semiconductor | |
Series | - | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Type | Fanout Buffer (Distribution), Multiplexer, Data | |
Number of Circuits | 1 | |
Ratio - Input:Output | 2:10 | |
Differential - Input:Output | Yes/Yes | |
Input | CML, ECL, LVCMOS, LVDS, LVTTL, NECL, PECL | |
Output | RSECL, RSNECL, RSPECL | |
Frequency - Max | 6GHz | |
Voltage - Supply | 2.375 V ~ 3.465 V | |
Operating Temperature | -40°C ~ 70°C | |
Mounting Type | Surface Mount | |

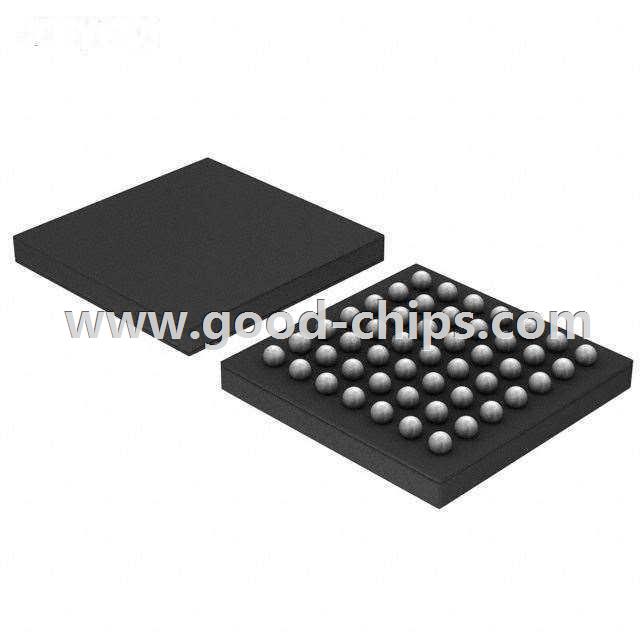

Package / Case | 49-LBGA, FCBGA | |
Supplier Device Package | 49-FCBGA (8x8) | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | NBSG111BAHTBG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
NBSG111BAHTBG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NBSG111BAHTBG is new and unused, you can buy NBSG111BAHTBG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NBSG111BAHTBG.
