| Manufacturer Part Number: | NB100LVEP221FAG |
|---|---|
| Manufacturer: | ON Semiconductor |
| Product Category: | Clock/Timing - Clock Buffers, Drivers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Clock Fanout Buffer (Distribution), Multiplexer IC 1GHz 52-LQFP Exposed Pad |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NB100LVEP221FAG Datasheet |
| Internal Part Number | 898-NB100LVEP221FAG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 20/Jan/2015 | |
| Category | Integrated Circuits (ICs) | |
| Family | Clock/Timing - Clock Buffers, Drivers | |
| Manufacturer | ON Semiconductor | |
| Series | 100LVEP | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Type | Fanout Buffer (Distribution), Multiplexer | |
| Number of Circuits | 1 | |
| Ratio - Input:Output | 2:20 | |
| Differential - Input:Output | Yes/Yes | |
| Input | ECL, HSTL, LVPECL | |
| Output | ECL, PECL | |
| Frequency - Max | 1GHz | |
| Voltage - Supply | 2.375 V ~ 3.8 V | |
| Operating Temperature | -40°C ~ 85°C | |
| Mounting Type | Surface Mount | |

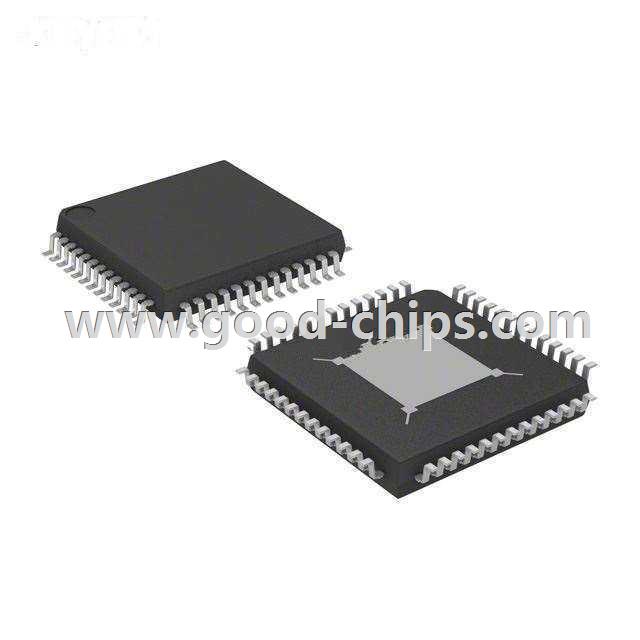

| Package / Case | 52-LQFP Exposed Pad | |
| Supplier Device Package | 52-LQFP (10x10) | |
| Standard Package | 160 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NB100LVEP221FAG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NB100LVEP221FAG is in stock for immediate shipping now. We are the distributor of ON Semiconductor all series components. The condition of NB100LVEP221FAG is new and unused, you can buy NB100LVEP221FAG ON Semiconductor with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NB100LVEP221FAG.
