| Manufacturer Part Number: | NANO100ND2BN |
|---|---|
| Manufacturer: | Nuvoton Technology Corporation of America |
| Product Category: | Embedded - Microcontrollers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | ARM® Cortex®-M0 NuMicro™ Nano100 Microcontroller IC 32-Bit 42MHz 64KB (64K x 8) FLASH 48-QFN (7x7) |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | NANO100ND2BN Datasheet |
| Internal Part Number | 898-NANO100ND2BN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Integrated Circuits (ICs) | |
| Family | Embedded - Microcontrollers | |
| Manufacturer | Nuvoton Technology Corporation of America | |
| Series | NuMicro™ Nano100 | |
| Packaging | Tray | |
| Part Status | Active | |
| Core Processor | ARM® Cortex®-M0 | |
| Core Size | 32-Bit | |
| Speed | 42MHz | |
| Connectivity | EBI/EMI, I²C, SPI, UART/USART | |
| Peripherals | Brown-out Detect/Reset, DMA, I²S, POR, PWM, WDT | |
| Number of I/O | 38 | |
| Program Memory Size | 64KB (64K x 8) | |
| Program Memory Type | FLASH | |
| EEPROM Size | - | |
| RAM Size | 8K x 8 | |
| Voltage - Supply (Vcc/Vdd) | 1.8 V ~ 3.6 V | |
| Data Converters | A/D 7x12b, D/A 2x12b | |
| Oscillator Type | Internal | |
| Operating Temperature | -40°C ~ 85°C (TA) | |

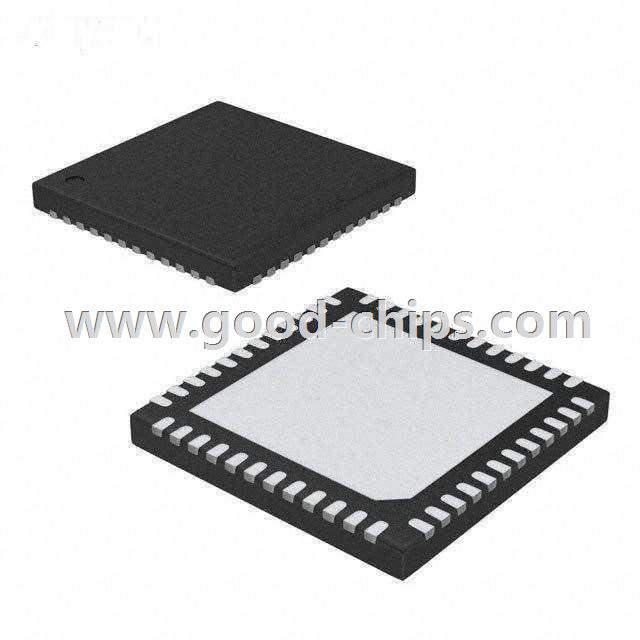

| Package / Case | 48-VFQFN Exposed Pad | |
| Supplier Device Package | 48-QFN (7x7) | |
| Standard Package | 416 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | NANO100ND2BN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
NANO100ND2BN is in stock for immediate shipping now. We are the distributor of Nuvoton Technology Corporation of America all series components. The condition of NANO100ND2BN is new and unused, you can buy NANO100ND2BN Nuvoton Technology Corporation of America with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for NANO100ND2BN.
