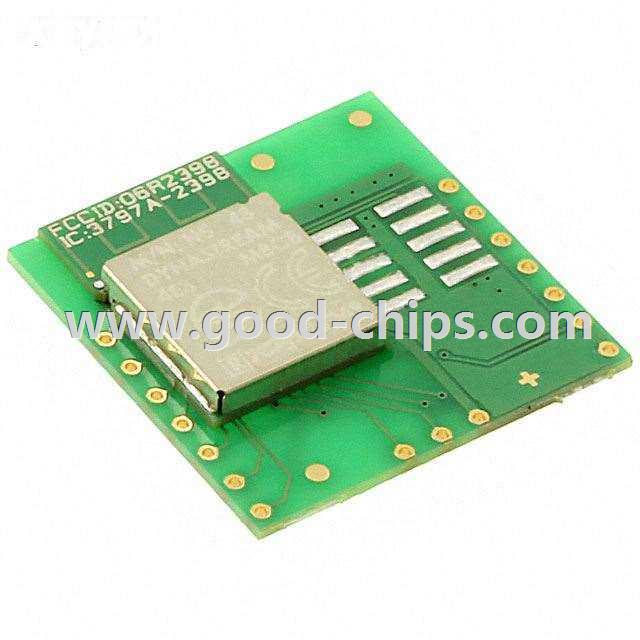

| Manufacturer Part Number: | N548M4CB-TRAY |
|---|---|
| Manufacturer: | Dynastream Innovations Inc. |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MOD BLUETOOTH TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | N548M4CB-TRAY Datasheet |
| Internal Part Number | 898-N548M4CB-TRAY | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | N5 ANT SoC Module Series | |
| PCN Obsolescence/ EOL | N548 Transition to N550 28/Jul/2015 | |
| PCN Design/Specification | N548 Module Update 28/Jan/2015 N48 Module Revision 06/Feb/2015 | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Dynastream Innovations Inc. | |
| Series | N5 | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| RF Family/Standard | Bluetooth | |
| Protocol | Bluetooth v4.1 | |
| Modulation | - | |
| Frequency | 2.4GHz | |
| Data Rate | 60kbps | |
| Power - Output | 4dBm | |
| Sensitivity | -93dBm | |
| Serial Interfaces | I²C, SPI, UART | |
| Antenna Type | Integrated, Trace | |
| Memory Size | 256kB Flash, 16kB RAM | |
| Voltage - Supply | 1.8 V ~ 3.6 V | |
| Current - Receiving | 16mA | |
| Current - Transmitting | 16mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -25°C ~ 75°C | |
| Package / Case | Module | |
| Standard Package | 20 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | N548M4CB-TRAY | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
N548M4CB-TRAY is in stock for immediate shipping now. We are the distributor of Dynastream Innovations Inc. all series components. The condition of N548M4CB-TRAY is new and unused, you can buy N548M4CB-TRAY Dynastream Innovations Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for N548M4CB-TRAY.
