Manufacturer Part Number: | N-P-3DV(40) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 9018 Pieces |
Unit Price: | Quote by Email |

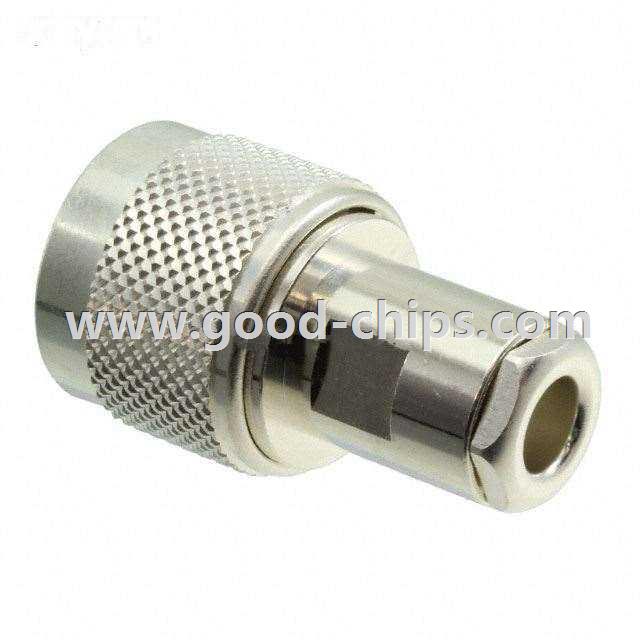

Description: | N Type Connector Plug, Male Pin 50 Ohm Free Hanging (In-Line) Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | N-P-3DV(40) Datasheet |
Internal Part Number | 898-N-P-3DV(40) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | N Type | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Hirose Electric Co Ltd | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Connector Style | N Type | |
Connector Type | Plug, Male Pin | |
Contact Termination | Solder | |
Shield Termination | Clamp | |
Impedance | 50 Ohm | |
Mounting Type | Free Hanging (In-Line) | |
Cable Group | 3C-2V | |
Fastening Type | Threaded | |
Frequency - Max | 1GHz | |
Features | - | |
Housing Color | Silver | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Nickel | |
Center Contact Material | Brass | |
Center Contact Plating | Gold | |
Dielectric Material | Polytetrafluoroethylene (PTFE) | |
Voltage Rating | - | |
Operating Temperature | -30°C ~ 60°C | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | N-P-3DV(40) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
N-P-3DV(40) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of N-P-3DV(40) is new and unused, you can buy N-P-3DV(40) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for N-P-3DV(40).
