| Manufacturer Part Number: | MZ0912B100Y,114 |
|---|---|
| Manufacturer: | Ampleon USA Inc. |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 20V 6A 1.215GHz 290W Surface Mount CDFM2 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MZ0912B100Y,114 Datasheet |
| Internal Part Number | 898-MZ0912B100Y,114 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Obsolescence/ EOL | Multiple Devices 03/Jul/2013 | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | Ampleon USA Inc. | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Obsolete | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 20V | |
| Frequency - Transition | 1.215GHz | |
| Noise Figure (dB Typ @ f) | - | |
| Gain | 7.6dB | |
| Power - Max | 290W | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | - | |
| Current - Collector (Ic) (Max) | 6A | |
| Mounting Type | Surface Mount | |

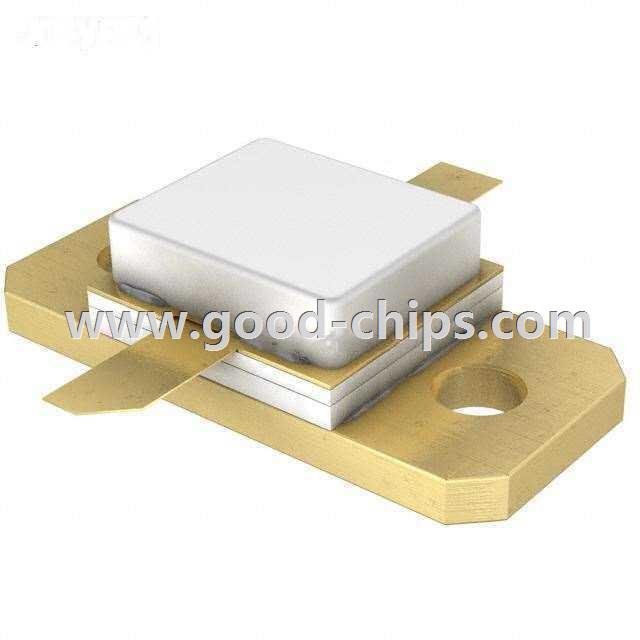

| Package / Case | SOT-443A | |
| Supplier Device Package | CDFM2 | |
| Standard Package | 4 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MZ0912B100Y,114 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MZ0912B100Y,114 is in stock for immediate shipping now. We are the distributor of Ampleon USA Inc. all series components. The condition of MZ0912B100Y,114 is new and unused, you can buy MZ0912B100Y,114 Ampleon USA Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MZ0912B100Y,114.
