Manufacturer Part Number: | MX7541AKP+ |
---|---|
Manufacturer: | Maxim Integrated |
Product Category: | Data Acquisition - Digital to Analog Converters (DAC) |
Available Quantity: | 9108 Pieces |
Unit Price: | Quote by Email |
Description: | 12 Bit Digital to Analog Converter 1 20-PLCC (9x9) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MX7541AKP+ Datasheet |
Internal Part Number | 898-MX7541AKP+ | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Mfg Application Notes | Damage from a Lightning Bolt or a Spark How Signal Chains and PLCs Impact Our Lives | |
Product Training Modules | Lead (SnPb) Finish for COTS Long-Term Supply Program | |
Online Catalog | 12-Bit | |
Category | Integrated Circuits (ICs) | |
Family | Data Acquisition - Digital to Analog Converters (DAC) | |
Manufacturer | Maxim Integrated | |
Series | - | |
Packaging | Tube | |
Part Status | Active | |
Number of Bits | 12 | |
Number of D/A Converters | 1 | |
Settling Time | 600µs | |
Output Type | Current - Unbuffered | |
Differential Output | Yes | |
Data Interface | Parallel | |
Reference Type | External | |
Voltage - Supply, Analog | 5 V ~ 16 V | |
Voltage - Supply, Digital | 5 V ~ 16 V | |
INL/DNL (LSB) | ±0.5 (Max), ±0.5 (Max) | |
Architecture | R-2R | |
Operating Temperature | 0°C ~ 70°C | |

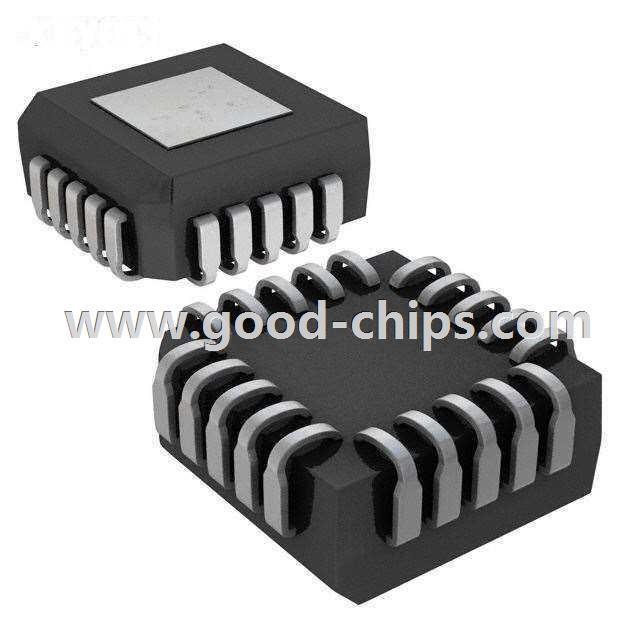

Package / Case | 20-LCC (J-Lead) | |
Supplier Device Package | 20-PLCC (9x9) | |
Standard Package | 49 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MX7541AKP+ | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MX7541AKP+ is in stock for immediate shipping now. We are the distributor of Maxim Integrated all series components. The condition of MX7541AKP+ is new and unused, you can buy MX7541AKP+ Maxim Integrated with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX7541AKP+.
