Manufacturer Part Number: | MX47039SF2 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 9375 Pieces |
Unit Price: | Quote by Email |

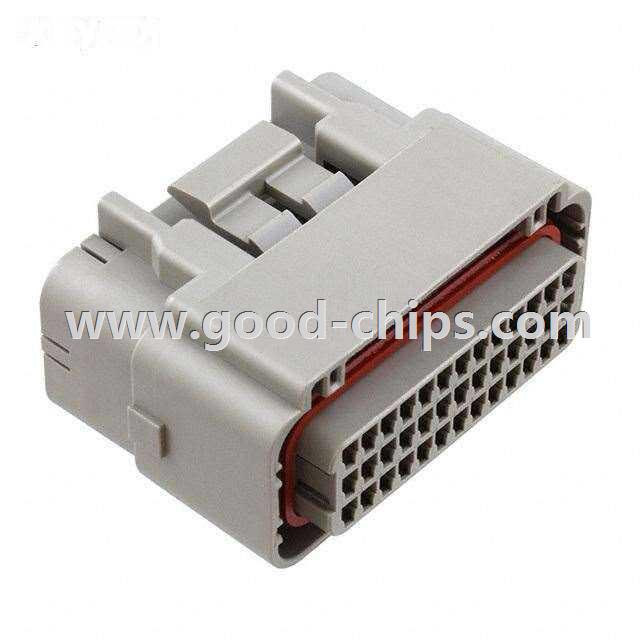

Description: | 39 Position Rectangular Housing Connector Socket Gray 0.098" (2.50mm) |
Lead Free Status / RoHS Status: | Lead free / Not applicable |
Moisture Sensitivity Level (MSL): | |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MX47039SF2 Datasheet |
Internal Part Number | 898-MX47039SF2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MX47 Series Compact Waterproof Automotive Connector | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | MX47 | |
Packaging | Bulk | |
Part Status | Active | |
Connector Type | Socket | |
Contact Type | Female Socket | |
Number of Positions | 39 | |
Pitch | 0.098" (2.50mm) | |
Number of Rows | 3 | |
Row Spacing | 0.142" (3.60mm) | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | Gray | |
Features | Waterproof (Mated) | |
Note | Contacts Not Provided | |
Standard Package | 55 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MX47039SF2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MX47039SF2 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of MX47039SF2 is new and unused, you can buy MX47039SF2 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX47039SF2.
