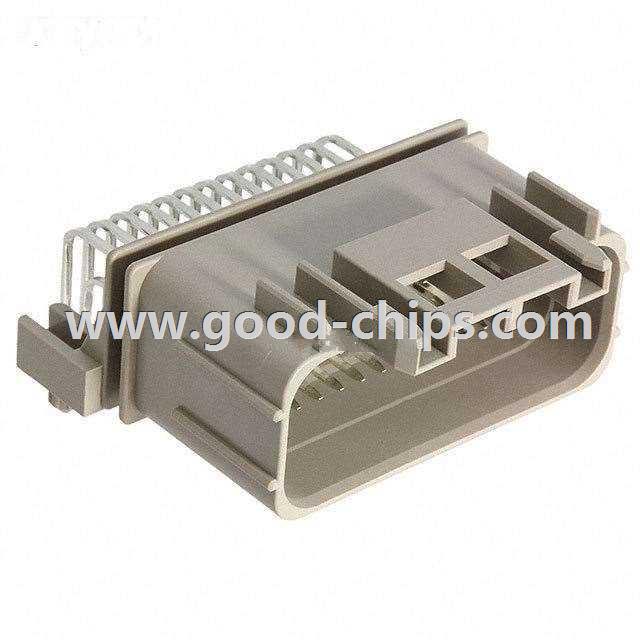

Manufacturer Part Number: | MX47039NF2 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular Connectors - Headers, Male Pins |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 39 Positions Header, Shrouded Connector 0.098" (2.50mm) Through Hole, Right Angle Tin |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MX47039NF2 Datasheet |
Internal Part Number | 898-MX47039NF2 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | MX47 Series Compact Waterproof Automotive Connector | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Headers, Male Pins | |
Manufacturer | JAE Electronics | |
Series | MX47 | |
Packaging | Bulk | |
Part Status | Active | |
Contact Type | Male Pin | |
Connector Type | Header, Shrouded | |
Number of Positions | 39 | |
Number of Positions Loaded | All | |
Pitch | 0.098" (2.50mm) | |
Number of Rows | 3 | |
Row Spacing | 0.142" (3.60mm) | |
Contact Mating Length | - | |
Mounting Type | Through Hole, Right Angle | |
Termination | Solder | |
Fastening Type | Latch Holder | |
Features | Board Guide, Waterproof | |
Contact Finish | Tin | |
Contact Finish Thickness | - | |
Color | Gray | |
Standard Package | 20 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MX47039NF2 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MX47039NF2 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of MX47039NF2 is new and unused, you can buy MX47039NF2 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX47039NF2.
