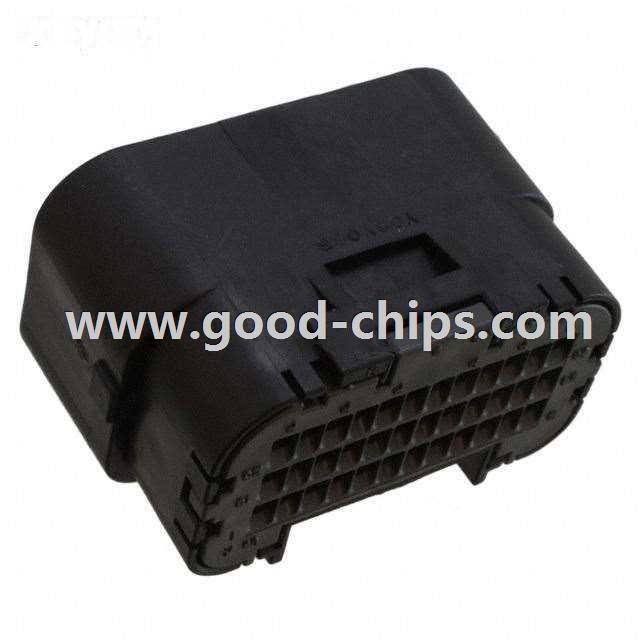

Manufacturer Part Number: | MX23A36SF1 |
---|---|
Manufacturer: | JAE Electronics |
Product Category: | Rectangular Connectors - Housings |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | 36 Position Rectangular Housing Connector Receptacle Black 0.098" (2.50mm) |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MX23A36SF1 Datasheet |
Internal Part Number | 898-MX23A36SF1 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Connectors, Interconnects | |
Family | Rectangular Connectors - Housings | |
Manufacturer | JAE Electronics | |
Series | MX23A | |
Packaging | Tray | |
Part Status | Active | |
Connector Type | Receptacle | |
Contact Type | Female Socket | |
Number of Positions | 36 | |
Pitch | 0.098" (2.50mm) | |
Number of Rows | 3 | |
Row Spacing | 0.173" (4.40mm) | |
Mounting Type | Free Hanging (In-Line) | |
Contact Termination | Crimp | |
Fastening Type | Latch Lock | |
Color | Black | |
Features | Waterproof | |
Note | Contacts Not Provided | |
Standard Package | 200 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MX23A36SF1 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MX23A36SF1 is in stock for immediate shipping now. We are the distributor of JAE Electronics all series components. The condition of MX23A36SF1 is new and unused, you can buy MX23A36SF1 JAE Electronics with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX23A36SF1.
