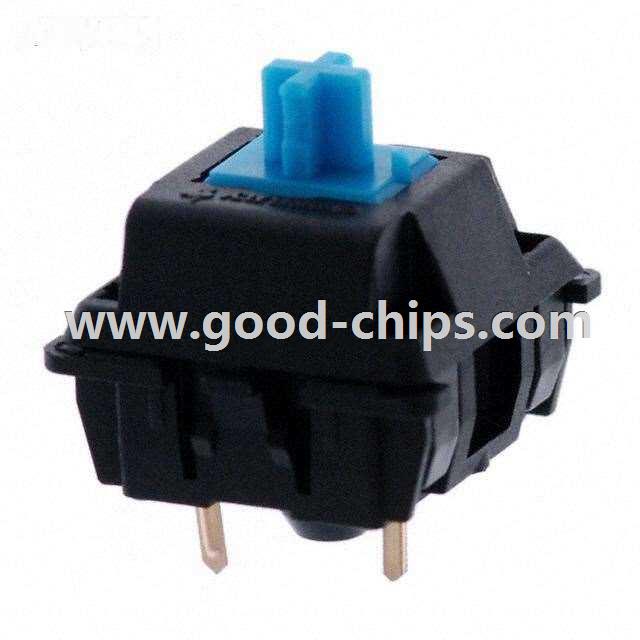

| Manufacturer Part Number: | MX1A-E1NN |
|---|---|
| Manufacturer: | Cherry Americas LLC |
| Product Category: | Pushbutton Switches |
| Available Quantity: | 20689 Pieces |
| Unit Price: | Quote by Email |
| Description: | Pushbutton Switch SPST-NO Keyswitch Panel Mount, Front |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MX1A-E1NN Datasheet |
| Internal Part Number | 898-MX1A-E1NN | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | Multiple Devices Click Improvement 31/Aug/2015 | |
| Online Catalog | MX Series | |
| Category | Switches | |
| Family | Pushbutton Switches | |
| Manufacturer | Cherry Americas LLC | |
| Series | MX | |
| Packaging | Bulk | |
| Part Status | Active | |
| Type | Keyswitch | |
| Circuit | SPST-NO | |
| Switch Function | Off-Mom | |
| Current Rating | 10mA (AC/DC) | |
| Voltage Rating - AC | 12V | |
| Voltage Rating - DC | 12V | |
| Actuator Type | Plunger for Cap | |
| Color - Actuator/Cap | Blue | |
| Illumination Type, Color | - | |
| Illumination Voltage (Nominal) | - | |
| Mounting Type | Panel Mount, Front | |
| Termination Style | PC Pin | |
| Ingress Protection | - | |
| Features | Audible Click | |
| Panel Cutout Dimensions | Square - 14.00mm² | |
| Operating Temperature | -10°C ~ 70°C | |
| Mechanical Life | - | |
| Electrical Life | 20,000,000 Cycles | |
| Standard Package | 8,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MX1A-E1NN | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MX1A-E1NN is in stock for immediate shipping now. We are the distributor of Cherry Americas LLC all series components. The condition of MX1A-E1NN is new and unused, you can buy MX1A-E1NN Cherry Americas LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MX1A-E1NN.
