Manufacturer Part Number: | MVU18-156DMK-A |
---|---|
Manufacturer: | 3M |
Product Category: | Terminals - Barrel, Bullet Connectors |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

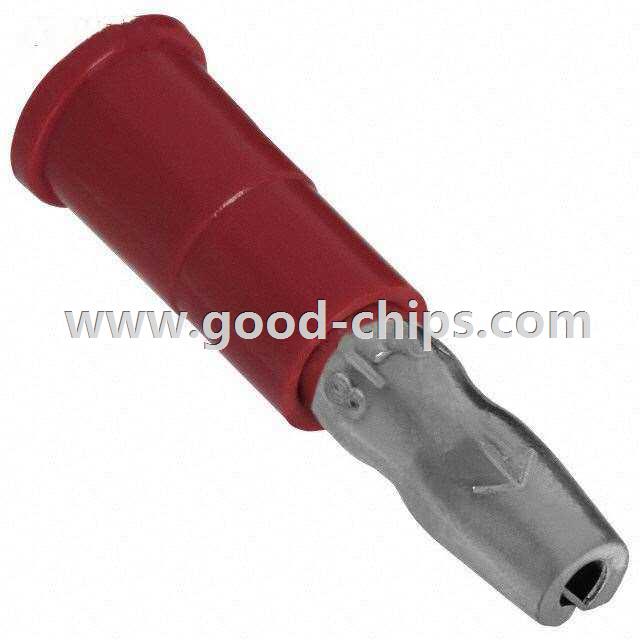

Description: | Terminal Connector Male, Pin (Plug) 18-22 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MVU18-156DMK-A Datasheet |
Internal Part Number | 898-MVU18-156DMK-A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Scotchlok Terminals Training | |
Category | Connectors, Interconnects | |
Family | Terminals - Barrel, Bullet Connectors | |
Manufacturer | 3M | |
Series | Scotchlok™ | |
Packaging | Bulk | |
Part Status | Obsolete | |
Terminal Type | Male, Pin (Plug) | |
Diameter - Barrel | 0.156" (3.96mm) | |
Wire Gauge | 18-22 AWG | |
Length - Overall | 0.850" (21.59mm) | |
Length - Barrel | 0.190" (4.83mm) | |
Insulation | Non-Mating End Insulated | |
Termination | Crimp | |
Features | - | |
Contact Material | - | |
Contact Finish | - | |
Color | Red | |
Insulation Diameter | 0.145" (3.68mm) | |
Material - Insulation | Vinyl | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MVU18-156DMK-A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MVU18-156DMK-A is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MVU18-156DMK-A is new and unused, you can buy MVU18-156DMK-A 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MVU18-156DMK-A.
