Manufacturer Part Number: | MVU14-516R/SK |
---|---|
Manufacturer: | 3M |
Product Category: | Terminals - Ring Connectors |
Available Quantity: | 9019 Pieces |
Unit Price: | Quote by Email |

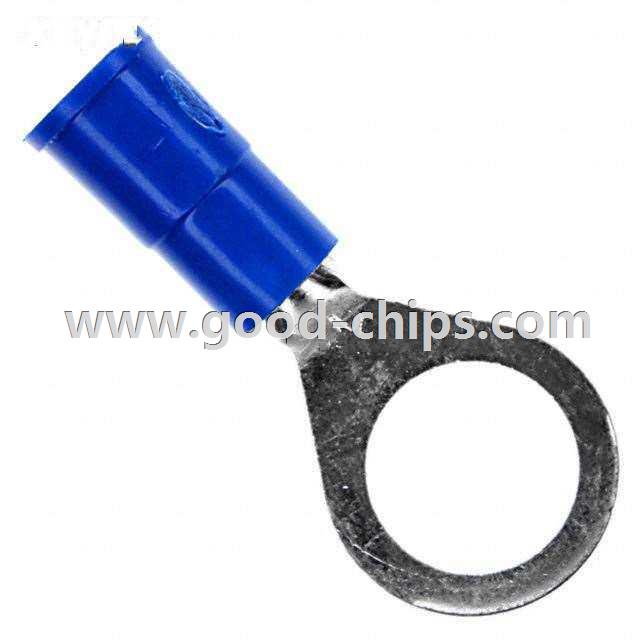

Description: | Ring Terminal Connector 5/16 Stud Circular 14-16 AWG Crimp |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MVU14-516R/SK Datasheet |
Internal Part Number | 898-MVU14-516R/SK | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Scotchlok Terminals Training | |
Featured Product | Scotchlok™ Tools and Connectors | |
Online Catalog | Scotchlok™ Series | |
Category | Connectors, Interconnects | |
Family | Terminals - Ring Connectors | |
Manufacturer | 3M | |
Series | Scotchlok™ | |
Packaging | Bulk | |
Part Status | Active | |
Terminal Type | Circular | |
Stud/Tab Size | 5/16 Stud | |
Thickness | 0.030" (0.76mm) | |
Width - Outer Edges | 0.470" (11.94mm) | |
Length - Overall | 1.080" (27.43mm) | |
Mounting Type | Free Hanging (In-Line) | |
Termination | Crimp | |
Wire Gauge | 14-16 AWG | |
Insulation | Insulated | |
Features | - | |
Color | Blue | |
Contact Material | Copper, ETP | |
Contact Finish | Tin | |
Insulation Diameter | 0.170" (4.32mm) | |
Material - Insulation | Vinyl | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MVU14-516R/SK | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MVU14-516R/SK is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MVU14-516R/SK is new and unused, you can buy MVU14-516R/SK 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MVU14-516R/SK.
