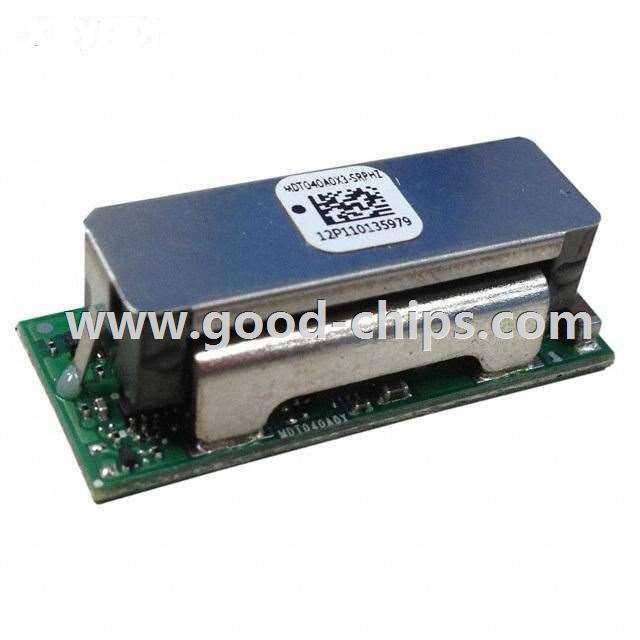

| Manufacturer Part Number: | MVT040A0X3-SRPHDZ |
|---|---|
| Manufacturer: | GE Critical Power |
| Product Category: | DC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | DC/DC CONVERT 0.45-2V 40A 80W |
| Lead Free Status / RoHS Status: | Contains lead / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 2A (4 Weeks) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MVT040A0X3-SRPHDZ Datasheet |
| Internal Part Number | 898-MVT040A0X3-SRPHDZ | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Assembly/Origin | Multiple Devices Additional Factory 20/Mar/2015 | |
| Manufacturer Product Page | Power Module Wizard™ | |
| Category | Power Supplies - Board Mount | |
| Family | DC DC Converters | |
| Manufacturer | GE Critical Power | |
| Series | Mega DLynx™ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Type | Non-Isolated PoL Module | |
| Number of Outputs | 1 | |
| Voltage - Input (Min) | 4.5V | |
| Voltage - Input (Max) | 14.4V | |
| Voltage - Output 1 | 0.45 ~ 2 V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Current - Output (Max) | 40A | |
| Power (Watts) - Manufacture Series | 80W | |
| Voltage - Isolation | - | |
| Applications | ITE (Commercial) | |
| Features | Remote On/Off, OCP, OTP, UVLO | |
| Mounting Type | Surface Mount | |
| Package / Case | Module | |
| Size / Dimension | 1.30" L x 0.53" W x 0.43" H (33.0mm x 13.5mm x 10.9mm) | |
| Operating Temperature | -40°C ~ 105°C | |
| Efficiency | 91.5% | |
| Power (Watts) - Max | 80W | |
| Standard Package | 140 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MVT040A0X3-SRPHDZ | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MVT040A0X3-SRPHDZ is in stock for immediate shipping now. We are the distributor of GE Critical Power all series components. The condition of MVT040A0X3-SRPHDZ is new and unused, you can buy MVT040A0X3-SRPHDZ GE Critical Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MVT040A0X3-SRPHDZ.
