| Manufacturer Part Number: | MV14-8FX-BOTTLE |
|---|---|
| Manufacturer: | 3M |
| Product Category: | Terminals - Spade Connectors |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |

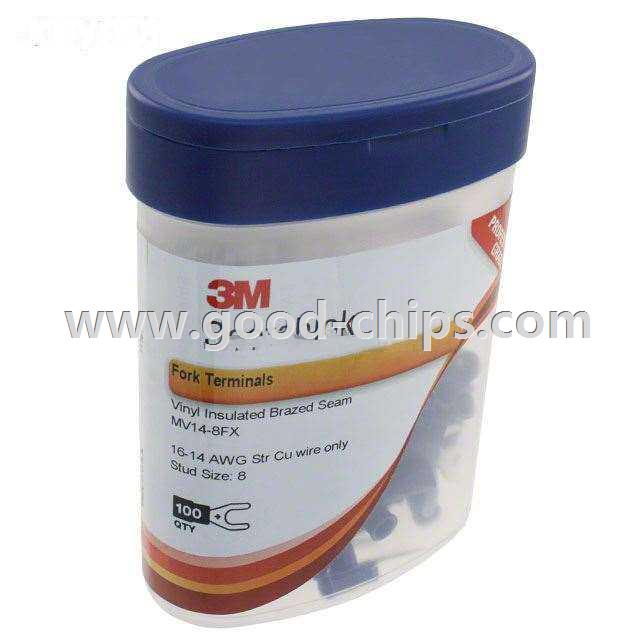

| Description: | Blue 8 Stud Spade Terminal Connector Crimp 14-16 AWG |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MV14-8FX-BOTTLE Datasheet |
| Internal Part Number | 898-MV14-8FX-BOTTLE | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Featured Product | Scotchlok™ Tools and Connectors | |
| Online Catalog | Scotchlok™ Series | |
| Category | Connectors, Interconnects | |
| Family | Terminals - Spade Connectors | |
| Manufacturer | 3M | |
| Series | Scotchlok™ | |
| Packaging | Bulk | |
| Part Status | Active | |
| Terminal Type | Standard | |
| Stud/Tab Size | 8 Stud | |
| Width - Outer Edges | 0.340" (8.64mm) | |
| Length - Overall | 0.900" (22.86mm) | |
| Mounting Type | Free Hanging (In-Line) | |
| Termination | Crimp | |
| Wire Gauge | 14-16 AWG | |
| Insulation | Insulated | |
| Features | Brazed Seam | |
| Color | Blue | |
| Contact Finish | Tin | |
| Contact Material | Copper, ETP | |
| Insulation Diameter | 0.170" (4.32mm) | |
| Material - Insulation | Vinyl | |
| Length - Ring Center to Termination | 0.290" (7.37mm) | |
| Length - Termination | 0.450" (11.43mm) | |
| Tongue Inside Opening | - | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MV14-8FX-BOTTLE | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MV14-8FX-BOTTLE is in stock for immediate shipping now. We are the distributor of 3M all series components. The condition of MV14-8FX-BOTTLE is new and unused, you can buy MV14-8FX-BOTTLE 3M with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MV14-8FX-BOTTLE.
