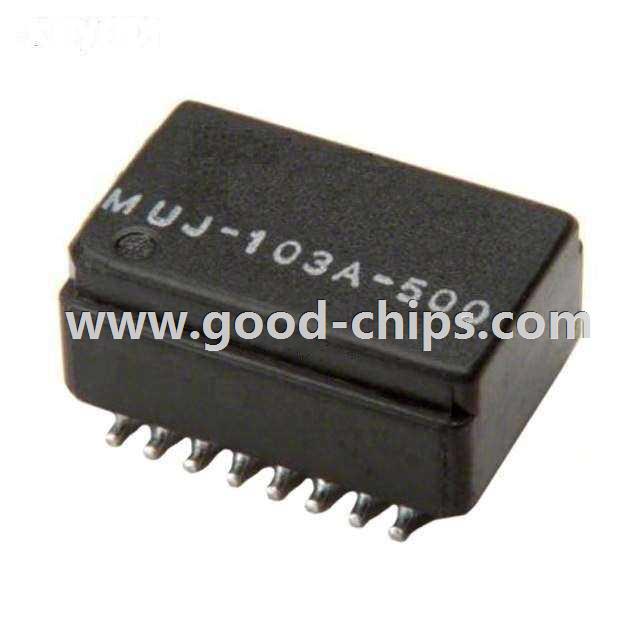

| Manufacturer Part Number: | MUJ-103A-500 |
|---|---|
| Manufacturer: | Amgis, LLC |
| Product Category: | Pulse Transformers |
| Available Quantity: | 12610 Pieces |
| Unit Price: | Quote by Email |
| Description: | INTERFACE MODULE 1:1:2:2 SMD |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MUJ-103A-500 Datasheet |
| Internal Part Number | 898-MUJ-103A-500 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MUJ | |
| Category | Transformers | |
| Family | Pulse Transformers | |
| Manufacturer | Amgis, LLC | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Transformer Type | Isolation and Data Interface (Encapsulated) | |
| Inductance | 25mH | |
| Turns Ratio - Primary:Secondary | 1 : 1 : 2 : 2 | |
| E.T. | - | |
| Mounting Type | Surface Mount | |
| Size / Dimension | 12.80mm L x 9.60mm W | |
| Height - Seated (Max) | 6.00mm | |
| Standard Package | 600 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MUJ-103A-500 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MUJ-103A-500 is in stock for immediate shipping now. We are the distributor of Amgis, LLC all series components. The condition of MUJ-103A-500 is new and unused, you can buy MUJ-103A-500 Amgis, LLC with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MUJ-103A-500.
