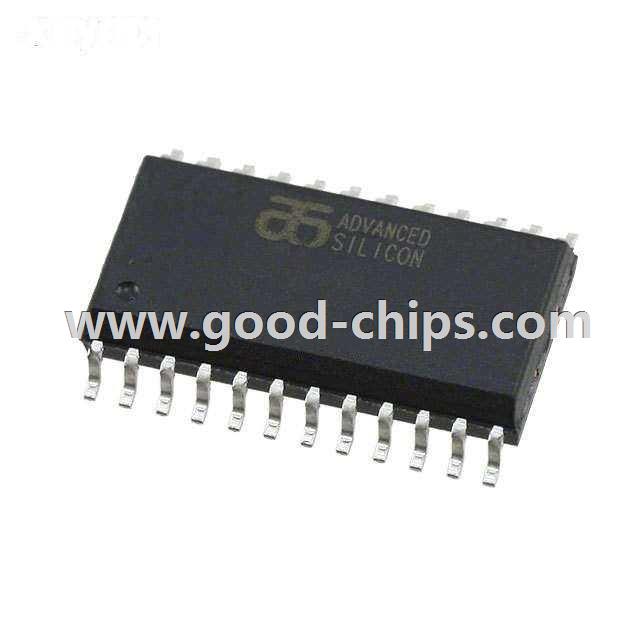

| Manufacturer Part Number: | MTS62C19A-HS105 |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | PMIC - Motor Drivers, Controllers |
| Available Quantity: | 11673 Pieces |
| Unit Price: | Quote by Email |
| Description: | Bipolar Motor Driver CMOS On/Off 24-SOP |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 3 (168 Hours) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MTS62C19A-HS105 Datasheet |
| Internal Part Number | 898-MTS62C19A-HS105 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| PCN Design/Specification | SOIC-24 SOIC MSL Classification 26/Nov/2013 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | Drivers | |
| Category | Integrated Circuits (ICs) | |
| Family | PMIC - Motor Drivers, Controllers | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tube | |
| Part Status | Active | |
| Motor Type - Stepper | Bipolar | |
| Motor Type - AC, DC | Brushed DC | |
| Function | Driver - Fully Integrated, Control and Power Stage | |
| Output Configuration | Half Bridge (4) | |
| Interface | On/Off | |
| Technology | CMOS | |
| Step Resolution | 1, 1/2, 1/4, 1/8 | |
| Applications | Automotive | |
| Current - Output | 550mA | |
| Voltage - Supply | 4.5 V ~ 5.5 V | |
| Voltage - Load | 10 V ~ 40 V | |
| Operating Temperature | -40°C ~ 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 24-BFSOP (0.295", 7.50mm Width) | |
| Supplier Device Package | 24-SOP | |
| Standard Package | 32 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MTS62C19A-HS105 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MTS62C19A-HS105 is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MTS62C19A-HS105 is new and unused, you can buy MTS62C19A-HS105 Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MTS62C19A-HS105.
