| Manufacturer Part Number: | MTM761230LBF |
|---|---|
| Manufacturer: | Panasonic Electronic Components |
| Product Category: | Transistors - FETs, MOSFETs - Single |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | MOSFET P-CH 20V 3A WSMINI6 |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MTM761230LBF Datasheet |
| Internal Part Number | 898-MTM761230LBF | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | MOSFETs for Power Management | |
| Featured Product | Wearables Technology Components | |
| Manufacturer Product Page | MTM761230LBF View all Specifications | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | P-Channel Standard FETs | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - FETs, MOSFETs - Single | |
| Manufacturer | Panasonic Electronic Components | |
| Series | - | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| FET Type | MOSFET P-Channel, Metal Oxide | |
| FET Feature | Standard | |
| Drain to Source Voltage (Vdss) | 20V | |
| Current - Continuous Drain (Id) @ 25°C | 3A (Ta) | |
| Rds On (Max) @ Id, Vgs | 55 mOhm @ 1A, 4V | |
| Vgs(th) (Max) @ Id | 1.3V @ 1mA | |
| Gate Charge (Qg) @ Vgs | - | |
| Input Capacitance (Ciss) @ Vds | 1000pF @ 10V | |
| Power - Max | 700mW | |
| Operating Temperature | 150°C (TJ) | |
| Mounting Type | Surface Mount | |
| Package / Case | 6-SMD, Flat Leads | |

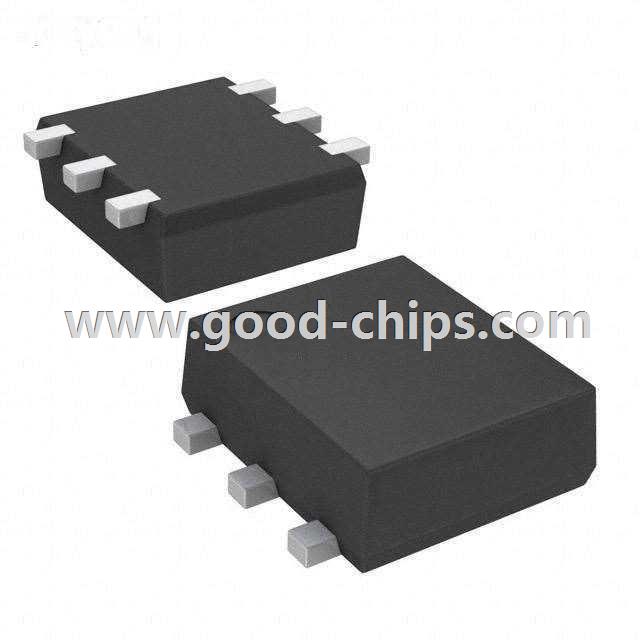

| Supplier Device Package | WSMini6-F1-B | |
| Standard Package | 3,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MTM761230LBF | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MTM761230LBF is in stock for immediate shipping now. We are the distributor of Panasonic Electronic Components all series components. The condition of MTM761230LBF is new and unused, you can buy MTM761230LBF Panasonic Electronic Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MTM761230LBF.
