| Manufacturer Part Number: | MT3S20P(TE12L,F) |
|---|---|
| Manufacturer: | Toshiba Semiconductor and Storage |
| Product Category: | Transistors - Bipolar (BJT) - RF |
| Available Quantity: | 9842 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Transistor NPN 12V 80mA 7GHz 1.8W Surface Mount PW-MINI |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MT3S20P(TE12L,F) Datasheet |
| Internal Part Number | 898-MT3S20P(TE12L,F) | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | NPN RF Transistors | |
| Category | Discrete Semiconductor Products | |
| Family | Transistors - Bipolar (BJT) - RF | |
| Manufacturer | Toshiba Semiconductor and Storage | |
| Series | - | |
| Packaging | Digi-Reel® | |
| Part Status | Active | |
| Transistor Type | NPN | |
| Voltage - Collector Emitter Breakdown (Max) | 12V | |
| Frequency - Transition | 7GHz | |
| Noise Figure (dB Typ @ f) | 1.45dB @ 1GHz | |
| Gain | 16.5dB | |
| Power - Max | 1.8W | |
| DC Current Gain (hFE) (Min) @ Ic, Vce | 100 @ 50mA, 5V | |
| Current - Collector (Ic) (Max) | 80mA | |
| Mounting Type | Surface Mount | |

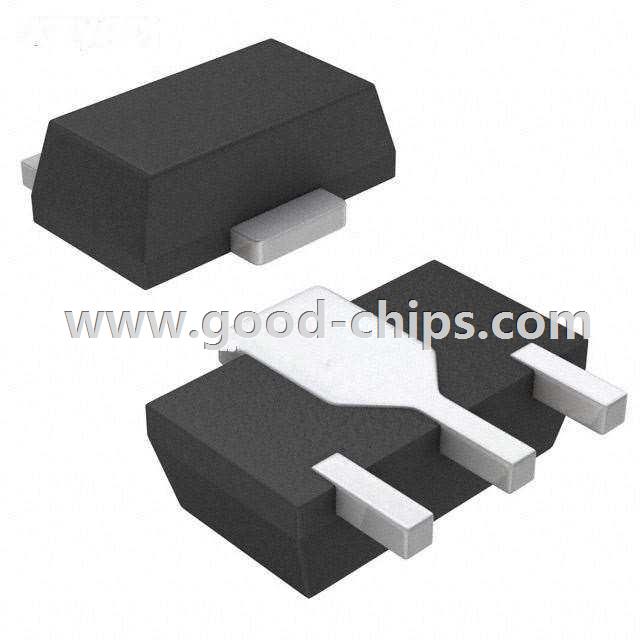

| Package / Case | TO-243AA | |
| Supplier Device Package | PW-MINI | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MT3S20P(TE12L,F) | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MT3S20P(TE12L,F) is in stock for immediate shipping now. We are the distributor of Toshiba Semiconductor and Storage all series components. The condition of MT3S20P(TE12L,F) is new and unused, you can buy MT3S20P(TE12L,F) Toshiba Semiconductor and Storage with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MT3S20P(TE12L,F).
