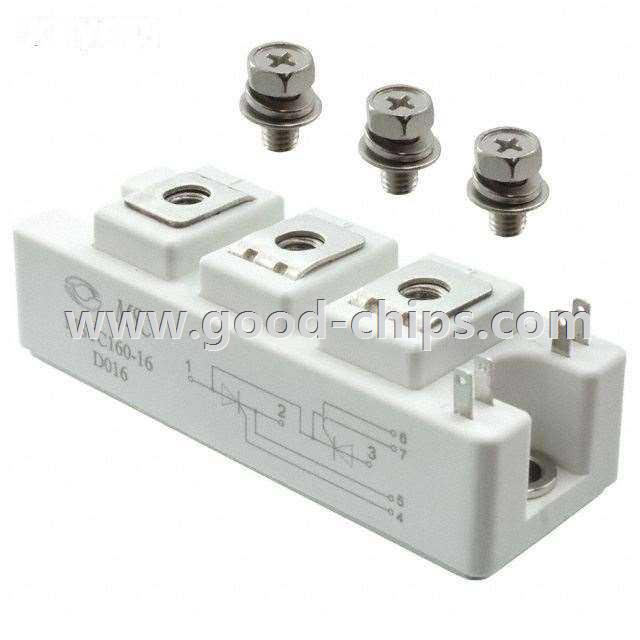

Manufacturer Part Number: | MSTC160-16 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Thyristors - SCRs - Modules |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | SCR Module 1600V Series Connection - All SCRs Screw Mount Module |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MSTC160-16 Datasheet |
Internal Part Number | 898-MSTC160-16 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | MSxC Series | |
Category | Discrete Semiconductor Products | |
Family | Thyristors - SCRs - Modules | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Structure | Series Connection - All SCRs | |
Number of SCRs, Diodes | 2 SCRs | |
Voltage - Off State | 1600V | |
Current - Gate Trigger (Igt) (Max) | 150mA | |
Current - On State (It (AV)) (Max) | 160A | |
Current - On State (It (RMS)) (Max) | - | |
Current - Non Rep. Surge 50, 60Hz (Itsm) | 5400A @ 50Hz | |
Current - Hold (Ih) (Max) | 400mA | |
Mounting Type | Screw Mount | |
Package / Case | Module | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MSTC160-16 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MSTC160-16 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MSTC160-16 is new and unused, you can buy MSTC160-16 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSTC160-16.
