Manufacturer Part Number: | MSS2P2HM3/89A |
---|---|
Manufacturer: | Vishay BC Components |
Product Category: | Diodes - Rectifiers - Single |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Diode Schottky 20V 2A Surface Mount MicroSMP |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MSS2P2HM3/89A Datasheet |
Internal Part Number | 898-MSS2P2HM3/89A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | Wafer Geometry Conversion 28/Jul/2015 | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Single | |
Manufacturer | Vishay Semiconductor Diodes Division | |
Series | Automotive, AEC-Q101, eSMP® | |
Packaging | Tape & Reel (TR) | |
Part Status | Obsolete | |
Diode Type | Schottky | |
Voltage - DC Reverse (Vr) (Max) | 20V | |
Current - Average Rectified (Io) | 2A | |
Voltage - Forward (Vf) (Max) @ If | 600mV @ 2A | |
Speed | Fast Recovery =< 500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 250µA @ 20V | |
Capacitance @ Vr, F | 65pF @ 4V, 1MHz | |
Mounting Type | Surface Mount | |

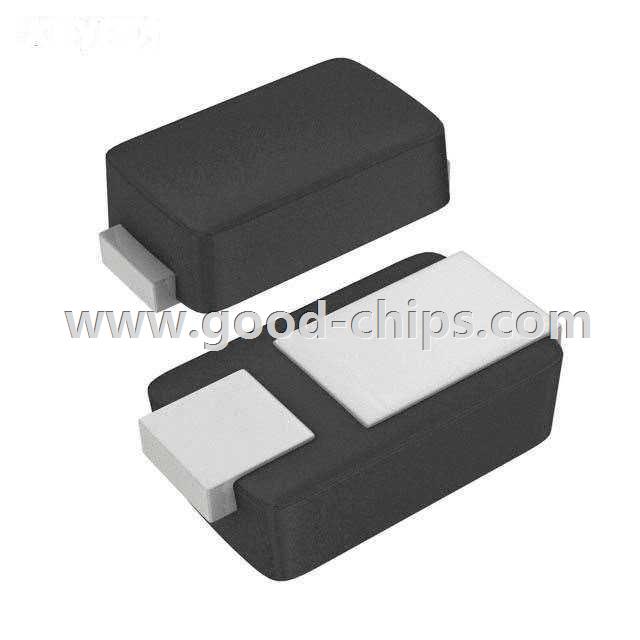

Package / Case | MicroSMP | |
Supplier Device Package | MicroSMP | |
Operating Temperature - Junction | -55°C ~ 150°C | |
Standard Package | 4,500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MSS2P2HM3/89A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MSS2P2HM3/89A is in stock for immediate shipping now. We are the distributor of Vishay BC Components all series components. The condition of MSS2P2HM3/89A is new and unused, you can buy MSS2P2HM3/89A Vishay BC Components with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSS2P2HM3/89A.
