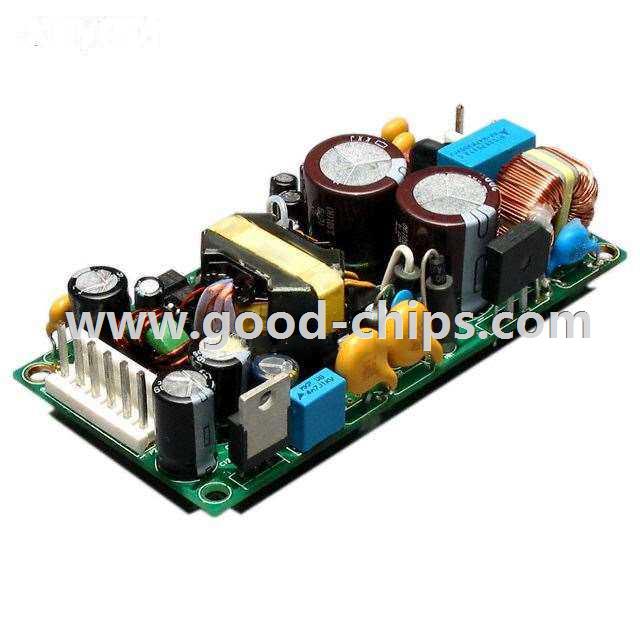

| Manufacturer Part Number: | MSM8009F |
|---|---|
| Manufacturer: | Inventus Power |
| Product Category: | AC DC Converters |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | AC/DC CONVERTER 9V 80W |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSM8009F Datasheet |
| Internal Part Number | 898-MSM8009F | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Power Supplies - External/Internal (Off-Board) | |
| Family | AC DC Converters | |
| Manufacturer | Inventus Power | |
| Series | MSM80 | |
| Part Status | Obsolete | |
| Type | Open Frame | |
| Number of Outputs | 1 | |
| Voltage - Input | 85 ~ 264 VAC | |
| Voltage - Output 1 | 9V | |
| Voltage - Output 2 | - | |
| Voltage - Output 3 | - | |
| Voltage - Output 4 | - | |
| Current - Output (Max) | 5A | |
| Power (Watts) | 80W | |
| Applications | Medical | |
| Voltage - Isolation | - | |
| Efficiency | 88% | |
| Operating Temperature | 0°C ~ 50°C | |
| Features | Universal Input | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 4.00" L x 2.00" W x 1.10" H (101.6mm x 50.8mm x 27.9mm) | |
| Minimum Load Required | - | |
| Approvals | CB, CE | |
| Power (Watts) - Max | 80W | |
| Standard Package | 1 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSM8009F | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSM8009F is in stock for immediate shipping now. We are the distributor of Inventus Power all series components. The condition of MSM8009F is new and unused, you can buy MSM8009F Inventus Power with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSM8009F.
