Manufacturer Part Number: | MSCD165-08 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Diodes - Rectifiers - Arrays |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |

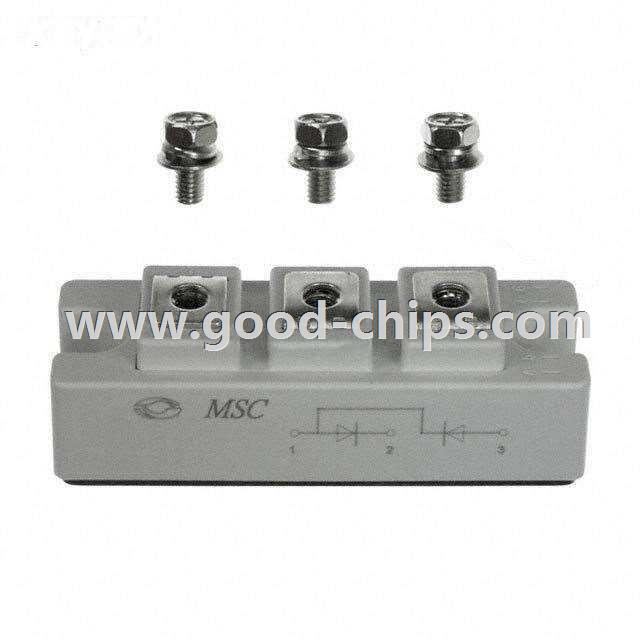

Description: | Diode Array 1 Pair Series Connection Standard 800V 165A Chassis Mount D2 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MSCD165-08 Datasheet |
Internal Part Number | 898-MSCD165-08 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Diodes - Rectifiers - Arrays | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Diode Configuration | 1 Pair Series Connection | |
Diode Type | Standard | |
Voltage - DC Reverse (Vr) (Max) | 800V | |
Current - Average Rectified (Io) (per Diode) | 165A | |
Voltage - Forward (Vf) (Max) @ If | 1.4V @ 300A | |
Speed | Standard Recovery >500ns, > 200mA (Io) | |
Reverse Recovery Time (trr) | - | |
Current - Reverse Leakage @ Vr | 9mA @ 800V | |
Mounting Type | Chassis Mount | |
Package / Case | D2 | |
Supplier Device Package | SD2 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MSCD165-08 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MSCD165-08 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MSCD165-08 is new and unused, you can buy MSCD165-08 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSCD165-08.
