Manufacturer Part Number: | MSA-1105-STRG |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | RF Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Amplifier IC 50MHz ~ 1.3GHz 05 Plastic Package |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MSA-1105-STRG Datasheet |
Internal Part Number | 898-MSA-1105-STRG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
PCN Obsolescence/ EOL | Multiple Devices 18/Mar/2013 | |
Category | RF/IF and RFID | |
Family | RF Amplifiers | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Frequency | 50MHz ~ 1.3GHz | |
P1dB | 17.5dBm (56.2mW) | |
Gain | 10dB ~ 12dB | |
Noise Figure | 3.6dB | |
RF Type | - | |
Voltage - Supply | 4.4 V ~ 6.6 V | |
Current - Supply | 80mA | |
Test Frequency | 500MHz | |

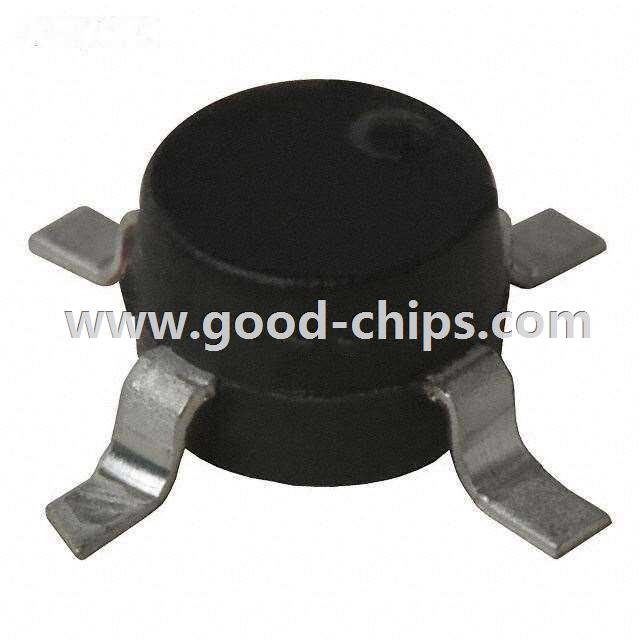

Package / Case | 4-SMD (05 Plastic) | |
Supplier Device Package | 05 Plastic Package | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MSA-1105-STRG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MSA-1105-STRG is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of MSA-1105-STRG is new and unused, you can buy MSA-1105-STRG Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSA-1105-STRG.
