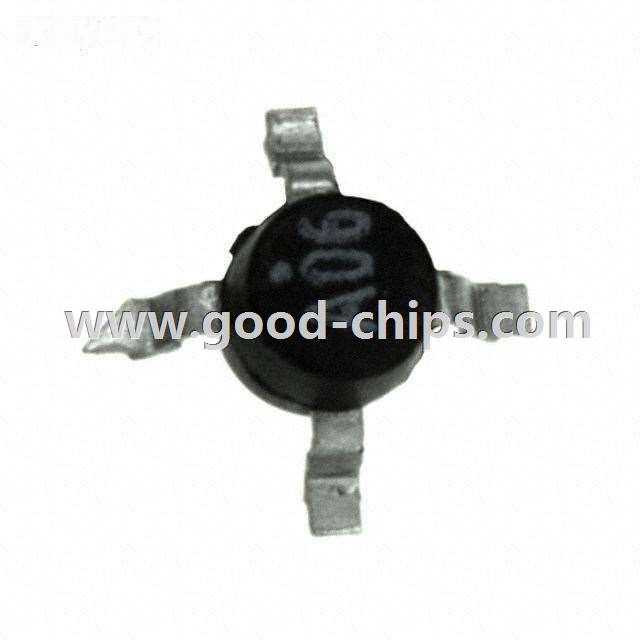

Manufacturer Part Number: | MSA-0686-BLKG |
---|---|
Manufacturer: | Broadcom Limited |
Product Category: | RF Amplifiers |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Amplifier IC 0Hz ~ 800MHz 86 Plastic Package |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MSA-0686-BLKG Datasheet |
Internal Part Number | 898-MSA-0686-BLKG | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Design Resources | IoT Product Selector | |
PCN Obsolescence/ EOL | Multiple Devices 18/Mar/2013 | |
Category | RF/IF and RFID | |
Family | RF Amplifiers | |
Manufacturer | Broadcom Limited | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Frequency | 0Hz ~ 800MHz | |
P1dB | 2dBm (1.6mW) | |
Gain | 16.5dB ~ 18.5dB | |
Noise Figure | 3dB | |
RF Type | - | |
Voltage - Supply | 2.8 V ~ 4.2 V | |
Current - Supply | 50mA | |
Test Frequency | 500MHz | |
Package / Case | SOT-86 | |
Supplier Device Package | 86 Plastic Package | |
Standard Package | 100 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MSA-0686-BLKG | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MSA-0686-BLKG is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of MSA-0686-BLKG is new and unused, you can buy MSA-0686-BLKG Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSA-0686-BLKG.
