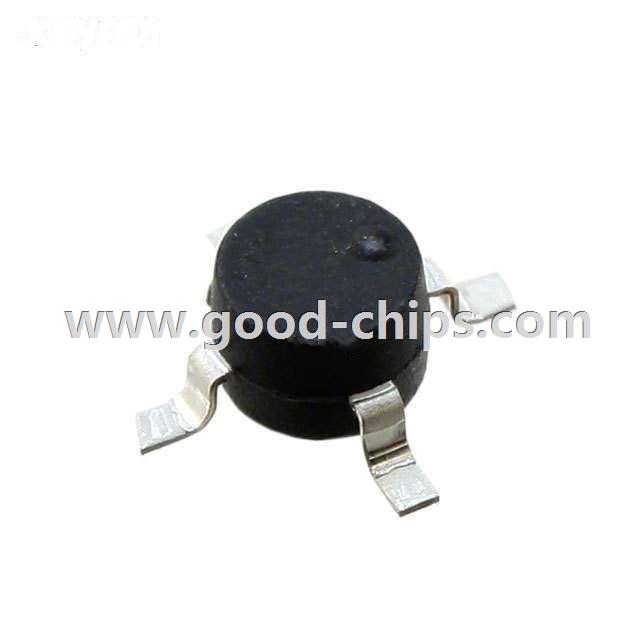

| Manufacturer Part Number: | MSA-0505-STRG |
|---|---|
| Manufacturer: | Broadcom Limited |
| Product Category: | RF Amplifiers |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF Amplifier IC ISM 20MHz ~ 2.3GHz 05 Plastic Package |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | Obsolete / Discontinued |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MSA-0505-STRG Datasheet |
| Internal Part Number | 898-MSA-0505-STRG | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | IoT Product Selector | |
| PCN Obsolescence/ EOL | Multiple Devices 18/Mar/2013 | |
| Category | RF/IF and RFID | |
| Family | RF Amplifiers | |
| Manufacturer | Broadcom Limited | |
| Series | - | |
| Packaging | Bulk | |
| Part Status | Obsolete | |
| Frequency | 20MHz ~ 2.3GHz | |
| P1dB | 18dBm (63.1mW) | |
| Gain | 7dB | |
| Noise Figure | 6.5dB | |
| RF Type | ISM | |
| Voltage - Supply | 6.7 V ~ 10.1 V | |
| Current - Supply | 80mA | |
| Test Frequency | 1GHz | |
| Package / Case | 4-SMD (05 Plastic) | |
| Supplier Device Package | 05 Plastic Package | |
| Standard Package | 100 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MSA-0505-STRG | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MSA-0505-STRG is in stock for immediate shipping now. We are the distributor of Broadcom Limited all series components. The condition of MSA-0505-STRG is new and unused, you can buy MSA-0505-STRG Broadcom Limited with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MSA-0505-STRG.
