Manufacturer Part Number: | MS0850501F070S1A |
---|---|
Manufacturer: | E-Switch |
Product Category: | Snap Action, Limit Switches |
Available Quantity: | 9886 Pieces |
Unit Price: | Quote by Email |

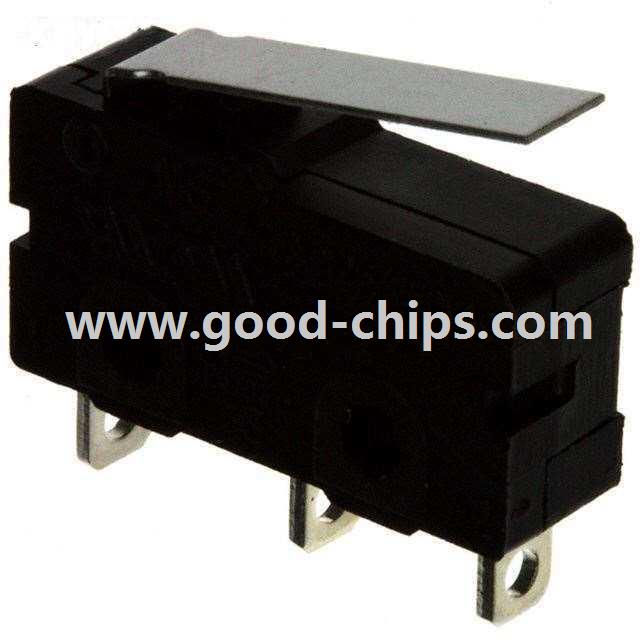

Description: | SWITCH SNAP ACTION SPDT 5A 125V |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MS0850501F070S1A Datasheet |
Internal Part Number | 898-MS0850501F070S1A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Switch Basics Power Switch Overview | |
RoHS Information | MS Series RoHS Cert of Compliance | |
3D Model | MS085yy01FyyyS1A.stp | |
Online Catalog | MS Series | |
Category | Switches | |
Family | Snap Action, Limit Switches | |
Manufacturer | E-Switch | |
Series | MS | |
Packaging | Bulk | |
Part Status | Active | |
Circuit | SPDT | |
Switch Function | On-Mom | |
Current Rating | 5A (AC) | |
Voltage Rating - AC | 125V | |
Voltage Rating - DC | - | |
Actuator Type | Lever, Straight | |
Mounting Type | Chassis Mount | |
Termination Style | Solder Lug | |
Ingress Protection | - | |
Features | - | |
Operating Force, Torque | 70gf | |
Release Force | 25gf | |
Pretravel | 0.140" (3.6mm) | |
Differential Travel | - | |
Overtravel | - | |
Operating Position | 0.358" (9.1mm) | |
Mechanical Life | 1,000,000 Cycles | |
Electrical Life | 50,000 Cycles | |
Operating Temperature | -25°C ~ 85°C | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MS0850501F070S1A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MS0850501F070S1A is in stock for immediate shipping now. We are the distributor of E-Switch all series components. The condition of MS0850501F070S1A is new and unused, you can buy MS0850501F070S1A E-Switch with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MS0850501F070S1A.
