Manufacturer Part Number: | MS05 |
---|---|
Manufacturer: | Apex Microtechnology |
Product Category: | Sockets for ICs, Transistors |
Available Quantity: | 9103 Pieces |
Unit Price: | Quote by Email |

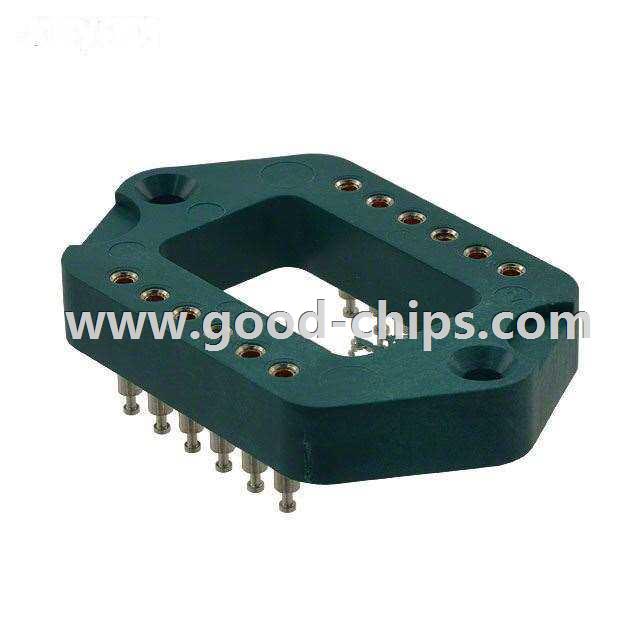

Description: | CONN IC DIP SOCKET 12POS GOLD |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MS05 Datasheet |
Internal Part Number | 898-MS05 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | Power Analog Portfolio | |
Category | Connectors, Interconnects | |
Family | Sockets for ICs, Transistors | |
Manufacturer | Apex Microtechnology | |
Series | Apex Precision Power® | |
Packaging | Bulk | |
Part Status | Active | |
Type | DIP, 1.2" (30.48mm) Row Spacing | |
Number of Positions or Pins (Grid) | 12 (2 x 6) | |
Pitch - Mating | 0.100" (2.54mm) | |
Contact Finish - Mating | Gold | |
Contact Finish Thickness - Mating | 30µin (0.76µm) | |
Contact Material - Mating | Beryllium Copper | |
Mounting Type | Through Hole | |
Features | Open Frame | |
Termination | Solder | |
Pitch - Post | 0.100" (2.54mm) | |
Contact Finish - Post | Tin | |
Contact Finish Thickness - Post | 200µin (5.08µm) | |
Contact Material - Post | Brass | |
Housing Material | Polyester, Glass Filled | |
Operating Temperature | - | |
Termination Post Length | 0.270" (6.86mm) | |
Material Flammability Rating | UL94 V-0 | |
Current Rating | - | |
Contact Resistance | - | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MS05 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MS05 is in stock for immediate shipping now. We are the distributor of Apex Microtechnology all series components. The condition of MS05 is new and unused, you can buy MS05 Apex Microtechnology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MS05.
