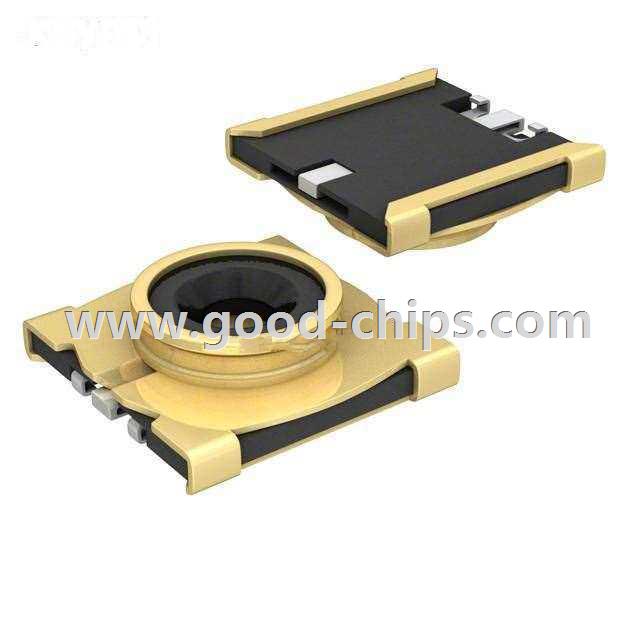

Manufacturer Part Number: | MS-180(20) |
---|---|
Manufacturer: | Hirose Electric Co Ltd |
Product Category: | Coaxial Connectors (RF) |
Available Quantity: | 12010 Pieces |
Unit Price: | Quote by Email |
Description: | Coaxial Switch - 2.24mm Plug Dia Connector Receptacle, Female Socket 50 Ohm Surface Mount Solder |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MS-180(20) Datasheet |
Internal Part Number | 898-MS-180(20) | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Video File | Tablet PC Connectors - Hirose | |
Featured Product | MS-180 Connector Series | |
Online Catalog | MS-180 Series | |
Category | Connectors, Interconnects | |
Family | Coaxial Connectors (RF) | |
Manufacturer | Hirose Electric Co Ltd | |
Series | MS-180 | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Connector Style | Coaxial Switch - 2.24mm Plug Dia | |
Connector Type | Receptacle, Female Socket | |
Contact Termination | Solder | |
Shield Termination | Solder | |
Impedance | 50 Ohm | |
Mounting Type | Surface Mount | |
Cable Group | - | |
Fastening Type | Snap-On | |
Frequency - Max | 11GHz | |
Features | Internal Switch | |
Housing Color | Gold | |
Ingress Protection | - | |
Body Material | Brass | |
Body Finish | Gold | |
Center Contact Material | Copper Alloy | |
Center Contact Plating | Gold | |
Dielectric Material | Liquid Crystal Polymer (LCP) | |
Voltage Rating | - | |
Operating Temperature | -40°C ~ 85°C | |
Standard Package | 3,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MS-180(20) | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MS-180(20) is in stock for immediate shipping now. We are the distributor of Hirose Electric Co Ltd all series components. The condition of MS-180(20) is new and unused, you can buy MS-180(20) Hirose Electric Co Ltd with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MS-180(20).
