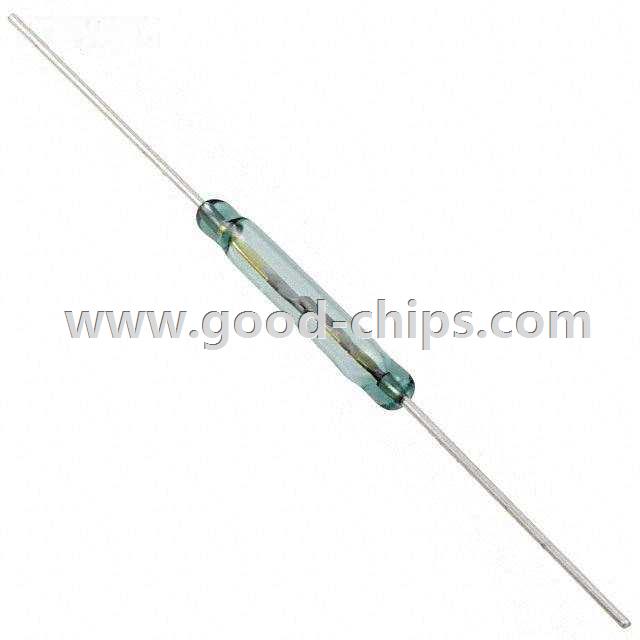

Manufacturer Part Number: | MRPR-8-32-38 |
---|---|
Manufacturer: | Littelfuse Inc. |
Product Category: | Magnetic, Reed Switches |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | Glass Body Reed Switch SPST-NO 32 ~ 38AT Operate Range 50W 700mA (AC), 1A (DC) 265V Through Hole |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MRPR-8-32-38 Datasheet |
Internal Part Number | 898-MRPR-8-32-38 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Other Related Documents | Ampere*turn vs. mT & Gauss Appl Note Handling of Reed Sensors, Relays, Switches Appl Note Reed Switch, Sensor Activation Appl Note Modifying Reed Switches | |
RoHS Information | Cert of Compliance | |
Category | Switches | |
Family | Magnetic, Reed Switches | |
Manufacturer | Littelfuse Inc. | |
Series | MRPR-8 | |
Packaging | Bulk | |
Part Status | Obsolete | |
Type | Glass Body | |
Circuit | SPST-NO | |
Operate Range | 32 ~ 38AT | |
Release Range | - | |
Current - Switching | 700mA (AC), 1A (DC) | |
Voltage - Switching AC | 265V | |
Voltage - Switching DC | 250V | |
Power - Rated | 50W | |
Operate Time | 0.75ms | |
Release Time | 0.3ms | |
Mounting Type | Through Hole | |
Termination Style | Axial | |
Length - Overall | 2.230" (56.64mm) | |
Size - Body | 0.112" Dia x 0.800" L (2.84mm x 20.32mm) | |
Height Above Board | - | |
Operating Temperature | -20°C ~ 125°C | |
Capacitance | 0.20pF | |
Current - Carry | 2.5A (DC) | |
Standard Package | 1,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MRPR-8-32-38 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MRPR-8-32-38 is in stock for immediate shipping now. We are the distributor of Littelfuse Inc. all series components. The condition of MRPR-8-32-38 is new and unused, you can buy MRPR-8-32-38 Littelfuse Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRPR-8-32-38.
