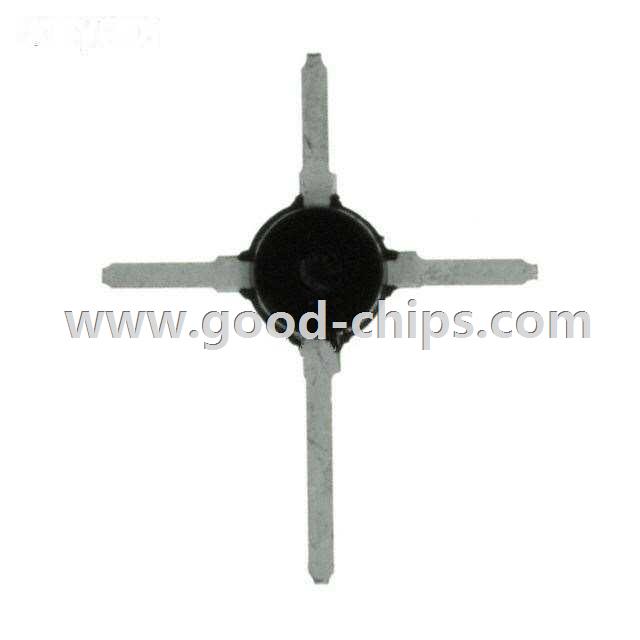

Manufacturer Part Number: | MRF581A |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor NPN 15V 200mA 5GHz 1.25W Surface Mount Micro-X ceramic (84C) |
Lead Free Status / RoHS Status: | Contains lead / RoHS non-compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | Obsolete / Discontinued |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MRF581A Datasheet |
Internal Part Number | 898-MRF581A | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
PCN Obsolescence/ EOL | MRF Series 02/Jul/2013 | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Obsolete | |
Transistor Type | NPN | |
Voltage - Collector Emitter Breakdown (Max) | 15V | |
Frequency - Transition | 5GHz | |
Noise Figure (dB Typ @ f) | 3dB ~ 3.5dB @ 500MHz | |
Gain | 13dB ~ 15.5dB | |
Power - Max | 1.25W | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 90 @ 50mA, 5V | |
Current - Collector (Ic) (Max) | 200mA | |
Mounting Type | Surface Mount | |
Package / Case | Micro-X ceramic (84C) | |
Supplier Device Package | Micro-X ceramic (84C) | |
Standard Package | 500 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MRF581A | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MRF581A is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MRF581A is new and unused, you can buy MRF581A Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRF581A.
