Manufacturer Part Number: | MRF545 |
---|---|
Manufacturer: | Microsemi Corporation |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9010 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor PNP 70V 400mA 1GHz ~ 1.4GHz 3.5W Through Hole TO-39 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MRF545 Datasheet |
Internal Part Number | 898-MRF545 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | Microsemi Corporation | |
Series | - | |
Packaging | Bulk | |
Part Status | Active | |
Transistor Type | PNP | |
Voltage - Collector Emitter Breakdown (Max) | 70V | |
Frequency - Transition | 1GHz ~ 1.4GHz | |
Noise Figure (dB Typ @ f) | - | |
Gain | 14dB | |
Power - Max | 3.5W | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 15 @ 50mA, 6V | |
Current - Collector (Ic) (Max) | 400mA | |
Mounting Type | Through Hole | |

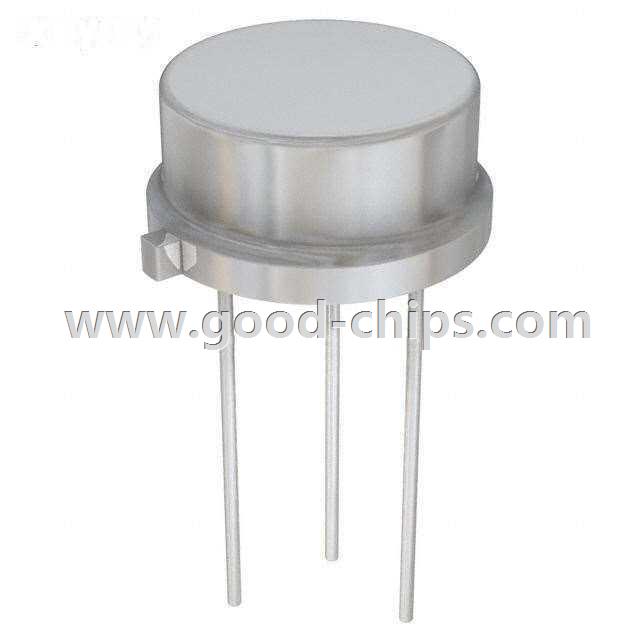

Package / Case | TO-205AD, TO-39-3 Metal Can | |
Supplier Device Package | TO-39 | |
Standard Package | 1 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MRF545 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MRF545 is in stock for immediate shipping now. We are the distributor of Microsemi Corporation all series components. The condition of MRF545 is new and unused, you can buy MRF545 Microsemi Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRF545.
