Manufacturer Part Number: | MRF316 |
---|---|
Manufacturer: | M/A-Com Technology Solutions |
Product Category: | Transistors - Bipolar (BJT) - RF |
Available Quantity: | 9043 Pieces |
Unit Price: | Quote by Email |
Description: | RF Transistor NPN 35V 9A 80W Chassis Mount 316-01, STYLE 1 |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MRF316 Datasheet |
Internal Part Number | 898-MRF316 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Online Catalog | NPN RF Transistors | |
Category | Discrete Semiconductor Products | |
Family | Transistors - Bipolar (BJT) - RF | |
Manufacturer | M/A-Com Technology Solutions | |
Series | - | |
Packaging | Tray | |
Part Status | Active | |
Transistor Type | NPN | |
Voltage - Collector Emitter Breakdown (Max) | 35V | |
Frequency - Transition | - | |
Noise Figure (dB Typ @ f) | - | |
Gain | 13dB | |
Power - Max | 80W | |
DC Current Gain (hFE) (Min) @ Ic, Vce | 10 @ 4A, 5V | |
Current - Collector (Ic) (Max) | 9A | |
Mounting Type | Chassis Mount | |

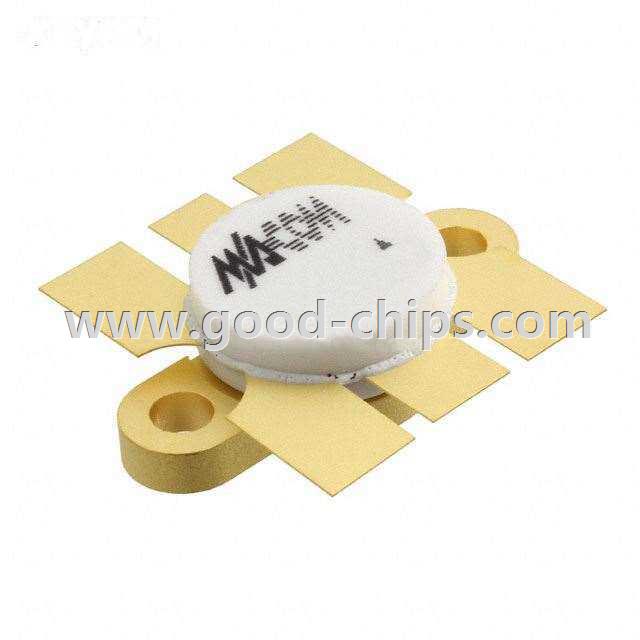

Package / Case | 316-01 | |
Supplier Device Package | 316-01, STYLE 1 | |
Standard Package | 10 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MRF316 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MRF316 is in stock for immediate shipping now. We are the distributor of M/A-Com Technology Solutions all series components. The condition of MRF316 is new and unused, you can buy MRF316 M/A-Com Technology Solutions with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRF316.
