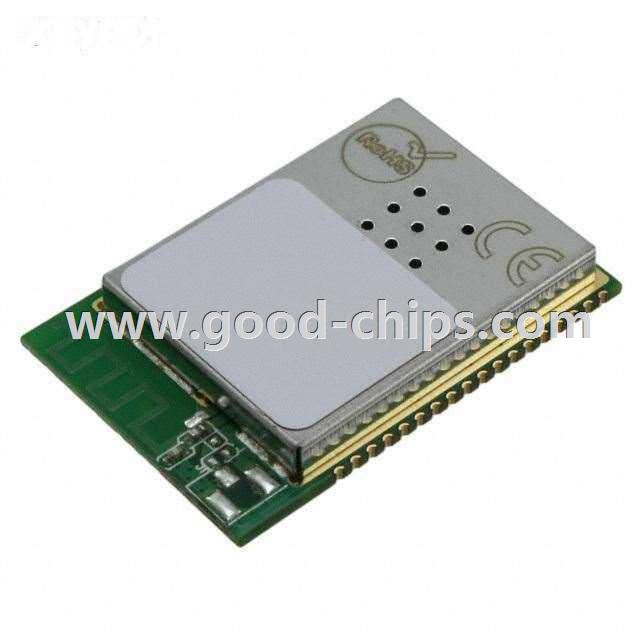

| Manufacturer Part Number: | MRF24WB0MA/RM |
|---|---|
| Manufacturer: | Microchip Technology |
| Product Category: | RF Transceiver Modules |
| Available Quantity: | 9164 Pieces |
| Unit Price: | Quote by Email |
| Description: | RF TXRX MODULE WIFI TRACE ANT |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MRF24WB0MA/RM Datasheet |
| Internal Part Number | 898-MRF24WB0MA/RM | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Design Resources | Development Tool Selector IoT Product Selector | |
| Featured Product | IEEE 802.11 - Wi-Fi Modules/Development Kit DV102411 Wi-Fi® Comm Demo Board | |
| PCN Design/Specification | MRF24WB0MA, MRF24WB0MB Datasheet 22/May/2013 | |
| PCN Packaging | Label and Packing Changes 23/Sep/2015 | |
| Online Catalog | MRF24WB0Mx | |
| Category | RF/IF and RFID | |
| Family | RF Transceiver Modules | |
| Manufacturer | Microchip Technology | |
| Series | - | |
| Packaging | Tray | |
| Part Status | Active | |
| RF Family/Standard | WiFi | |
| Protocol | 802.11b | |
| Modulation | DSSS | |
| Frequency | 2.4GHz | |
| Data Rate | 2Mbps | |
| Power - Output | 10dBm | |
| Sensitivity | -91dBm | |
| Serial Interfaces | JTAG, SPI | |
| Antenna Type | Integrated, Trace | |
| Memory Size | - | |
| Voltage - Supply | 2.7 V ~ 3.6 V | |
| Current - Receiving | 85mA | |
| Current - Transmitting | 115mA ~ 154mA | |
| Mounting Type | Surface Mount | |
| Operating Temperature | -40°C ~ 85°C | |
| Package / Case | Module | |
| Standard Package | 45 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MRF24WB0MA/RM | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MRF24WB0MA/RM is in stock for immediate shipping now. We are the distributor of Microchip Technology all series components. The condition of MRF24WB0MA/RM is new and unused, you can buy MRF24WB0MA/RM Microchip Technology with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MRF24WB0MA/RM.
