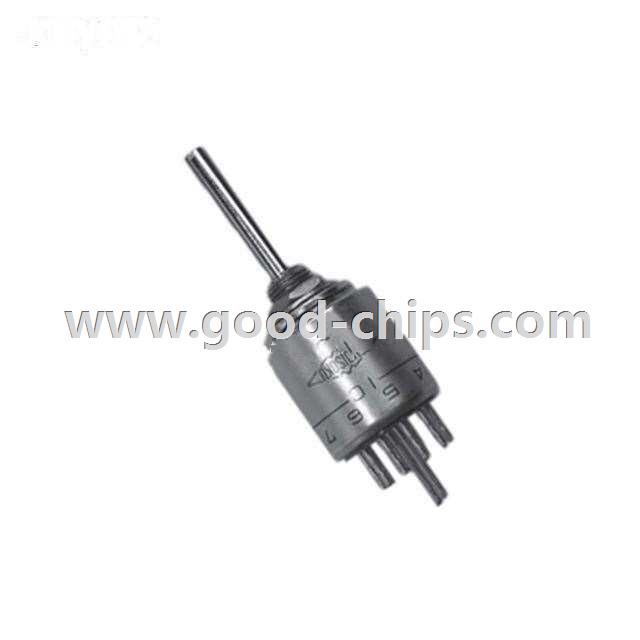

| Manufacturer Part Number: | MR4-2-Z |
|---|---|
| Manufacturer: | Copal Electronics Inc. |
| Product Category: | Rotary Switches |
| Available Quantity: | 9010 Pieces |
| Unit Price: | Quote by Email |
| Description: | Rotary Switch 2 Position 4PDT 500mA (AC) 125VAC Panel Mount, Through Hole |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MR4-2-Z Datasheet |
| Internal Part Number | 898-MR4-2-Z | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Category | Switches | |
| Family | Rotary Switches | |
| Manufacturer | Copal Electronics Inc. | |
| Series | MR | |
| Part Status | Active | |
| Number of Positions | 2 | |
| Index Stops | Fixed | |
| Number of Decks | 1 | |
| Number of Poles per Deck | 4 | |
| Circuit per Deck | 4PDT | |
| Contact Timing | Not Specified | |
| Current Rating | 500mA (AC) | |
| Voltage Rating - AC | 125V | |
| Voltage Rating - DC | - | |
| Actuator Type | Round (3.17mm Dia), Slotted | |
| Actuator Length | 19.00mm | |
| Angle of Throw | 36° | |
| Contact Material | - | |
| Contact Finish | Silver | |
| Mounting Type | Panel Mount, Through Hole | |
| Termination Style | PC Pin | |
| Features | Sealed - Flux Protection | |
| Depth Behind Panel | 25.50mm | |
| Panel Cutout Dimensions | Circular - 6.50mm Dia | |
| Operating Force, Torque | 9.8 N-cm | |
| Standard Package | 25 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MR4-2-Z | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MR4-2-Z is in stock for immediate shipping now. We are the distributor of Copal Electronics Inc. all series components. The condition of MR4-2-Z is new and unused, you can buy MR4-2-Z Copal Electronics Inc. with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MR4-2-Z.
