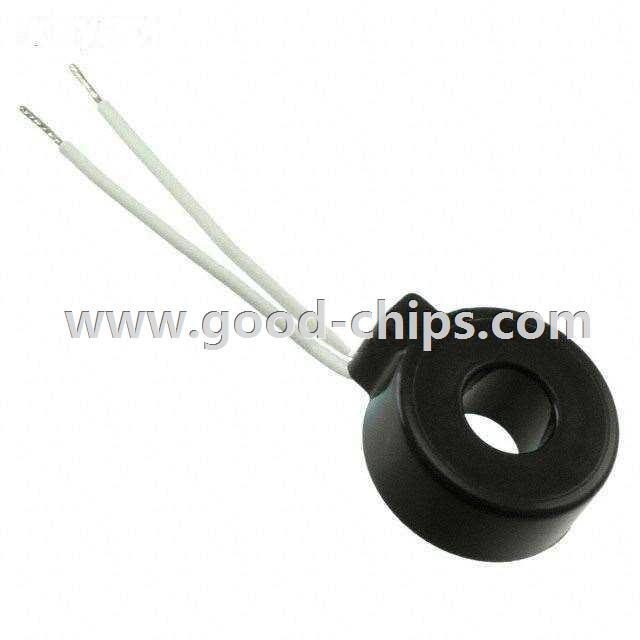

| Manufacturer Part Number: | MR-1 |
|---|---|
| Manufacturer: | Kemet |
| Product Category: | Current Sense Transformers |
| Available Quantity: | 9090 Pieces |
| Unit Price: | Quote by Email |
| Description: | SENSOR CURRENT ID7.2MM OD22.4MM |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MR-1 Datasheet |
| Internal Part Number | 898-MR-1 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Online Catalog | MR Series | |
| Category | Transformers | |
| Family | Current Sense Transformers | |
| Manufacturer | Kemet | |
| Series | MR | |
| Part Status | Active | |
| Turns Ratio - Primary:Secondary | * | |
| Frequency | * | |
| Inductance | - | |
| Current Rating | - | |
| DC Resistance (DCR) | - | |
| E.T. | - | |
| Mounting Type | Chassis Mount | |
| Size / Dimension | 0.882" L x 0.760" W (22.40mm x 19.30mm) | |
| Height - Seated (Max) | 0.327" (8.30mm) | |
| Termination Style | Wire Leads | |
| Standard Package | 80 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MR-1 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MR-1 is in stock for immediate shipping now. We are the distributor of Kemet all series components. The condition of MR-1 is new and unused, you can buy MR-1 Kemet with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MR-1.
