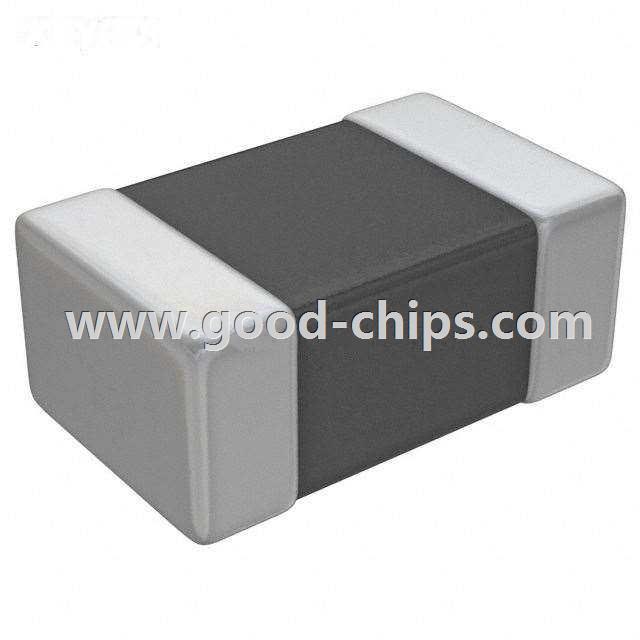

Manufacturer Part Number: | MPZ2012S601AT000 |
---|---|
Manufacturer: | TDK Corporation |
Product Category: | Ferrite Beads and Chips |
Available Quantity: | 177010 Pieces |
Unit Price: | Quote by Email |
Description: | 600 Ohm Impedance Ferrite Bead 0805 (2012 Metric) Surface Mount Power Line 2A 1 Lines 100 mOhm Max DCR -55°C ~ 125°C |
Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
Production Status (Lifecycle): | In Production |
Delivery Time: | 1-2 Days |
Date Code (D/C): | New |
Datasheet Download: | MPZ2012S601AT000 Datasheet |
Internal Part Number | 898-MPZ2012S601AT000 | |
Manufacturer Lead time | 6-8 weeks | |
Condition | New & Unused, Original Sealed | |
Product Training Modules | EMC Components | |
PCN Part Number | MMZ,MPS Series Oct/2014 | |
EDA / CAD Models | Download from Accelerated Designs | |
Online Catalog | MPZ Series | |
Category | Filters | |
Family | Ferrite Beads and Chips | |
Manufacturer | TDK Corporation | |
Series | MPZ | |
Packaging | Tape & Reel (TR) | |
Part Status | Active | |
Filter Type | Power Line | |
Number of Lines | 1 | |
Impedance @ Frequency | 600 Ohm @ 100MHz | |
Current Rating (Max) | 2A | |
DC Resistance (DCR) (Max) | 100 mOhm | |
Ratings | - | |
Operating Temperature | -55°C ~ 125°C | |
Package / Case | 0805 (2012 Metric) | |
Mounting Type | Surface Mount | |
Height (Max) | 0.041" (1.05mm) | |
Size / Dimension | 0.079" L x 0.049" W (2.00mm x 1.25mm) | |
Standard Package | 4,000 | |
Weight | 0.001 KG | |
Application | Email for details | |
Replacement Part | MPZ2012S601AT000 | |
Country of Origin | USA / JAPAN / Philippines / Malaysia | |
MOQ | 1 Piece | |
Picture / Image / Photo | Send via email |
MPZ2012S601AT000 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MPZ2012S601AT000 is new and unused, you can buy MPZ2012S601AT000 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPZ2012S601AT000.
