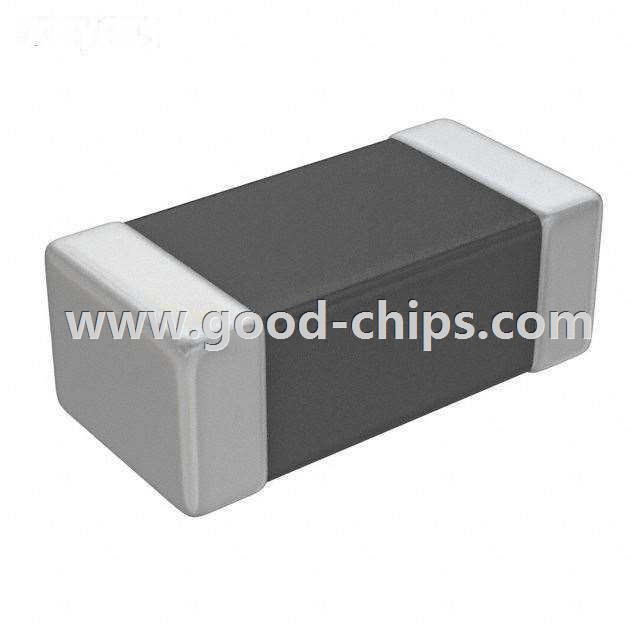

| Manufacturer Part Number: | MPZ1608S101ATAH0 |
|---|---|
| Manufacturer: | TDK Corporation |
| Product Category: | Ferrite Beads and Chips |
| Available Quantity: | 69010 Pieces |
| Unit Price: | Quote by Email |
| Description: | 100 Ohm Impedance Ferrite Bead 0603 (1608 Metric) Surface Mount Power Line 3A 1 Lines 30 mOhm Max DCR -55°C ~ 125°C |
| Lead Free Status / RoHS Status: | Lead free / RoHS Compliant |
| Moisture Sensitivity Level (MSL): | 1 (Unlimited) |
| Production Status (Lifecycle): | In Production |
| Delivery Time: | 1-2 Days |
| Date Code (D/C): | New |
| Datasheet Download: | MPZ1608S101ATAH0 Datasheet |
| Internal Part Number | 898-MPZ1608S101ATAH0 | |
| Manufacturer Lead time | 6-8 weeks | |
| Condition | New & Unused, Original Sealed | |
| Product Training Modules | EMC Components | |
| PCN Part Number | MMZ,MPS Series Oct/2014 | |
| EDA / CAD Models | Download from Accelerated Designs | |
| Online Catalog | MPZ Series | |
| Category | Filters | |
| Family | Ferrite Beads and Chips | |
| Manufacturer | TDK Corporation | |
| Series | MPZ | |
| Packaging | Tape & Reel (TR) | |
| Part Status | Active | |
| Filter Type | Power Line | |
| Number of Lines | 1 | |
| Impedance @ Frequency | 100 Ohm @ 100MHz | |
| Current Rating (Max) | 3A | |
| DC Resistance (DCR) (Max) | 30 mOhm | |
| Ratings | - | |
| Operating Temperature | -55°C ~ 125°C | |
| Package / Case | 0603 (1608 Metric) | |
| Mounting Type | Surface Mount | |
| Height (Max) | 0.030" (0.75mm) | |
| Size / Dimension | 0.063" L x 0.031" W (1.60mm x 0.80mm) | |
| Standard Package | 4,000 | |
| Weight | 0.001 KG | |
| Application | Email for details | |
| Replacement Part | MPZ1608S101ATAH0 | |
| Country of Origin | USA / JAPAN / Philippines / Malaysia | |
| MOQ | 1 Piece | |
| Picture / Image / Photo | Send via email | |
MPZ1608S101ATAH0 is in stock for immediate shipping now. We are the distributor of TDK Corporation all series components. The condition of MPZ1608S101ATAH0 is new and unused, you can buy MPZ1608S101ATAH0 TDK Corporation with us at a very low price and quick delivery.
Please kindly send us an email if you have any demands for MPZ1608S101ATAH0.
